VSI Sand Making Machine

introduce

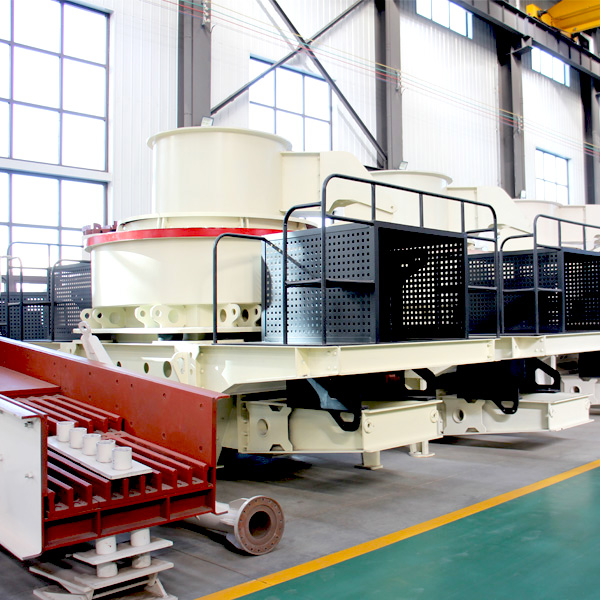

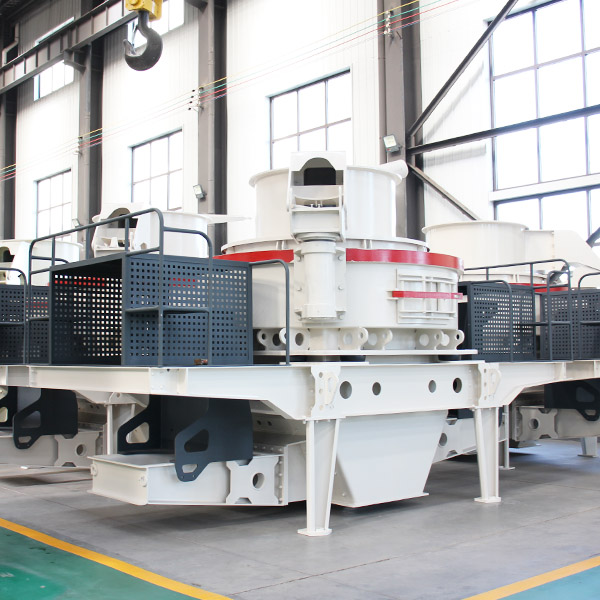

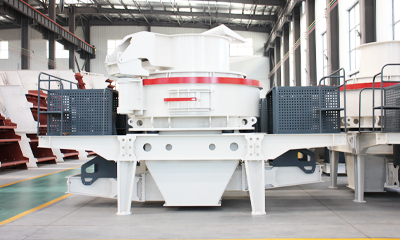

YUSHENG 5X VSI series of Vertical Shaft Impact Crusher (Sand Making Machine) is a highly efficient crushing machine which introduces “stone to stone” and "stone to iron" crushing principle from American Bamac company. In Combination with domestic actual sand making condition, this vertical shaft impact crusher is designed as a highly efficient crushing machine of domestic and international standard. It's suitable for medium and fine crushing all kinds of rocks and ores with different hardness such as iron ore, bauxite, non-ferrous metal ore, perlite, quartz sand, corundum, brown corundum, basalt and other hardness materials. This centrifugal impact crusher is widely used to crush various rocks, grinding materials, concrete aggregate, refractory, clinker, quartz, iron ore, etc.

5X7615

Model

150~280

Capacity (t/h)

<35

Max. Feeding Size (mm)

1700~1900

Rotation Speed (r/min)

75x2

Double Motor Power (kW)

380V，50Hz

Power Supply

Get A Question

Chat Now

Send Email

product Feature

Unique structure and stable operation.

Lower energy consumption, larger capacity and high crushing ratio.

Perfect cubic shape, big bulk density.

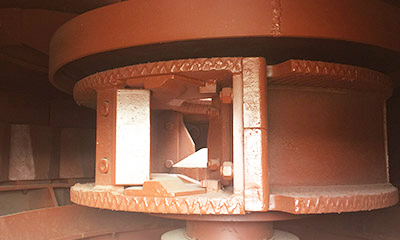

Material will form one protective layer during production, protect the crusher body, and make it more durable.

product Deatails

product Technical Parameter

Model		5X7615	5X8522	5X9532	5X1145
Capacity (t/h)	Central Feeding with Circular Cascade Feeding	150~280	240～380	350～540	500～640
	Fully Central Feeding
		70~140	120~200	180~280	250~360
Max. Feeding Size (mm)	Soft Material	<35	<40	<45	<50

	Hard Material	<30	<35	<40	<45
Rotation Speed (r/min)		1700~1900	1500~1700	1300~1510	1100~1310
Double Motor Power (kW)		150	220	320	440
Overall Dimension LWH (mm)		4100×2300×2300	4140×2500×2700	4560×2600×2900	5100×2790×3320
Power Supply		380V，50Hz
Double Oil Pumps Motor’s Power (kW)		2x0.31
Thin Oil Lubrication Station	Safety Assurance	Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;
		Air cooling system /water cooling system available; preheating-start engine adopted.
	Power of Oil Tank Heater(kW)	2

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

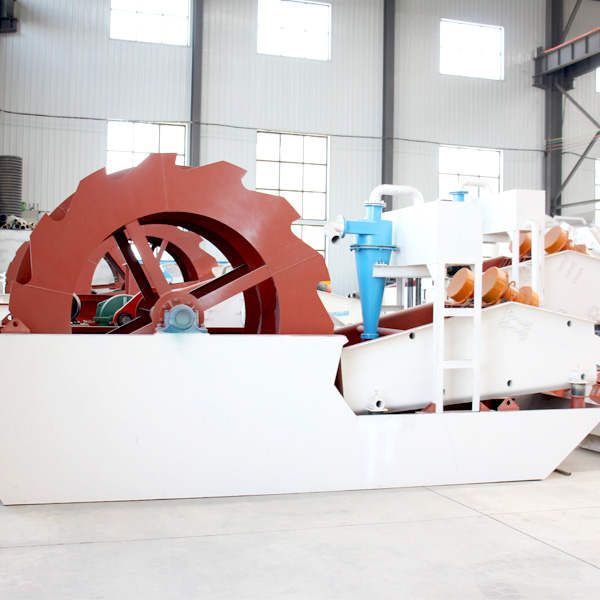

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant

Yusheng has obtained a number of invention licenses, and the products they developed and produced have been exported to many countries and regions in the world.
