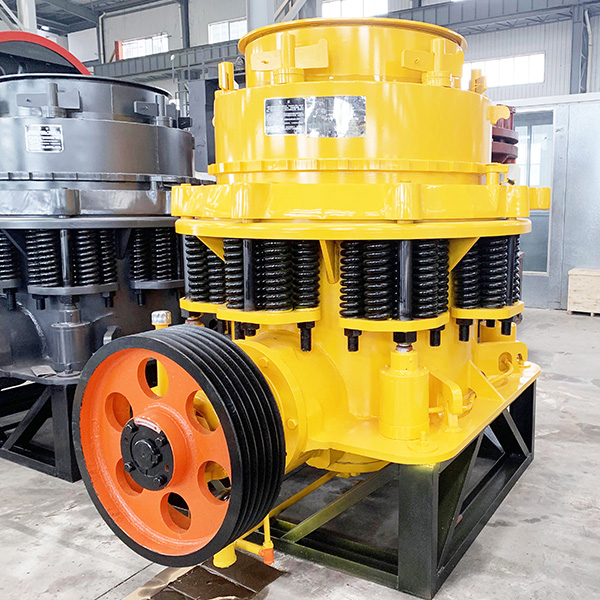

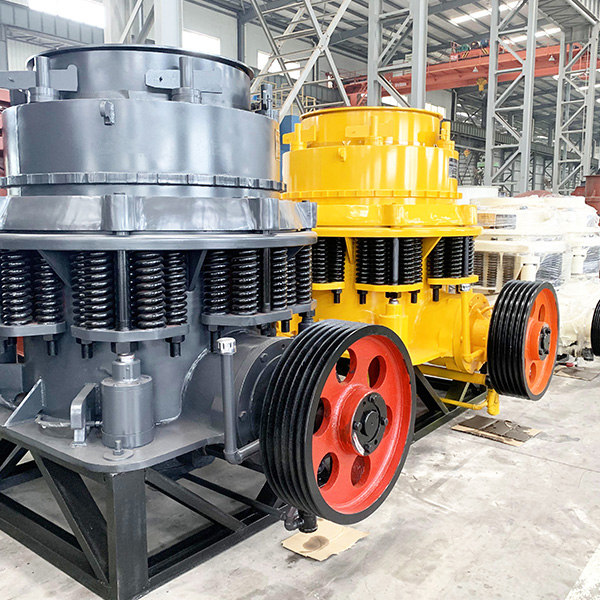

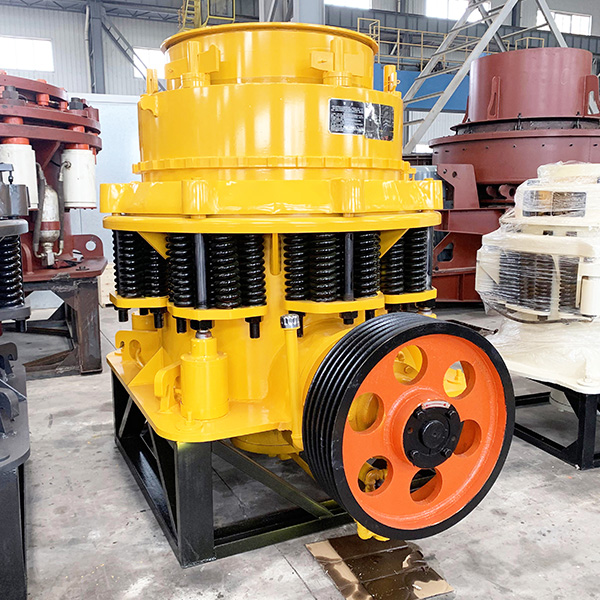

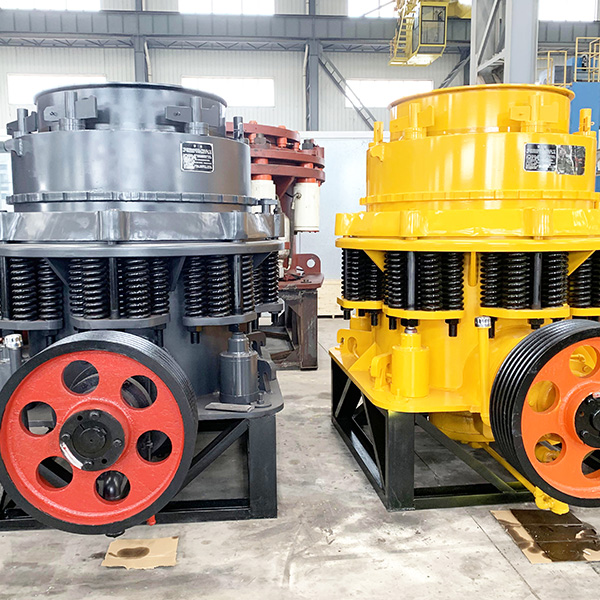

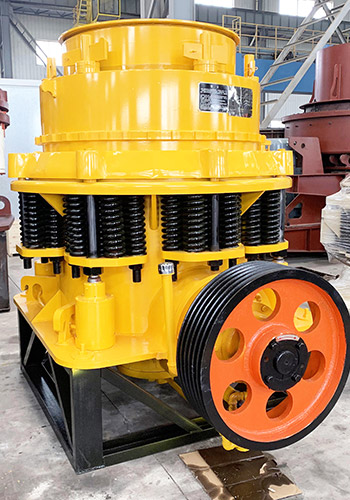

Symons Cone Crusher
Symons Cone Crusher
Symons Cone Crusher
Symons Cone Crusher

Symons Cone Crusher

introduce
Symons cone crusher is a kind of secure crusher, currently widely used in the world, with the characteristics of high quality, even size, excellent performance, long service life, and easy maintenance. Compared with PY Series Spring Cone Crusher, it has the characteristics of reliable structure, high production efficiency, and convenient adjustment. It is the most ideal equipment that suitable for crushing hard, medium hardness above all kinds of ores and rocks in large scale factories . Symons Cone Crusher has been widely applied in the field of mining, construction, metallurgical, hydropower, chemical, and silicate industry, etc.
18-725 t/h

Capacity

85-313 mm

Feed Size

9-64 mm

Adjusting range of outlet

Feature
Deatails
Technical Parameter
Case
product Feature
Large crushing ratio and good stability.
Perfect lubricating device ensures reliable functions of crusher.
Wearing parts of high quality lowers cost efficiently.
Good products size composition
Long service life and easy maintenance.

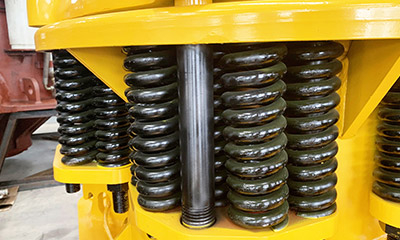

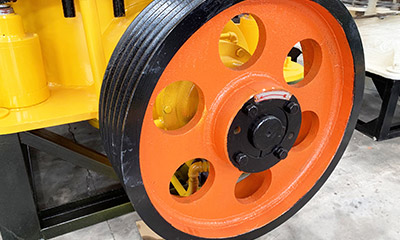

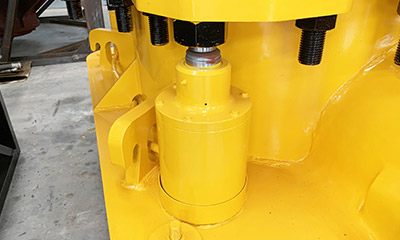

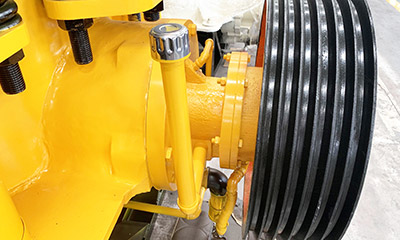

product Deatails
Application: Symons cone crusher can crush many kinds of rocks and ores with medium and above medium hard scale in metallurgy, hydropower, road building, construction , and chemical and hydrated silica industry.
product Technical Parameter
Type Model Cavity Type Diameter of cone (mm) Adjusting Range of Discharge
Opening (mm)
Recommend feeding size when the minimum output size (mm) Max feed
size (mm)
Capacity (t/h) Main
Motor
Power (kw)
Weight (T) Overall
Dimension
(L×W×H)
(mm)
3’FT PSGB- 0910 Standard fine 900 9-22 102 85 45-91 75 9.98 2656×1636×2241
PSGB- 0917 Standard coarse 13-38 175 150 59-163
PSGB- 0918  Standard super coarse 25-38 178 150 118-163
PSGD-0904 Short head fine 3-13 41 35 27-90 10.53
PSGD-0906  Short head medium 3-16 76 65 27-100
PSGD-0907 Short head coarse 6-19 102 85 59-129
4.25’FT PSGB- 1313 Standard fine 1295 13-31 137 115 109-181 160 22.46 2983×1866×3156
PSGB- 1321 Standard medium 16-38 210 178 132-253
PSGB- 1324 Standard coarse 19-51 241 205 172-349
PSGB- 1325 Standard super coarse 25-51 259 220 236-358
PSGD-1306 Short head fine 3-16 64 54 36-163 22.59
PSGD-1308 Short head medium 6-16 89 76 82-163
PSGD-1310 Short head coarse 8-25 105 89 109-227
PSGD-1313 Short head super coarse 16-25 133 113 209-236
5.5’FT PSGB- 1620 Standard fine 1676 16-38 209 178 181-327 220 43.27 3941×2954×3771
PSGB- 1624 Standard medium 22-51 241 205 258-417
PSGB- 1626 Standard coarse 25-64 269 228 299-635
PSGB- 1636 Standard super coarse 38-64 368 313 431-630
PSGD-1607 Short head fine 5-13 70 60 90-209 43.87
PSGD-1608 Short head medium 6-19 89 76 136-281
PSGD-1613 short head coarse 10-25 133 113 190-336
PSGD-1614 Short head super coarse 13-25 133 113 253-336
7’FT PSGB- 2127 Standard fine 2134 19-38 278 236 544-1034 400 86.73 4613×3302×4638
PSGB- 2133 Standard medium 25-51 334 284 862-1424
PSGB- 2136 Standard coarse 31-64 369 314 1125-1814
PSGB- 2146 Standard super coarse 38-64 460 391 1252-1941
PSGD-2110 Short head fine 5-16 105 89 218-463 89.5
PSGD-2113 Short head medium 10-19 133 113 404-580
PSGD-2117 short head coarse 13-25 178 151 517-680
PSGD-2120 Short head super coarse 16-25 203 172 580-744
