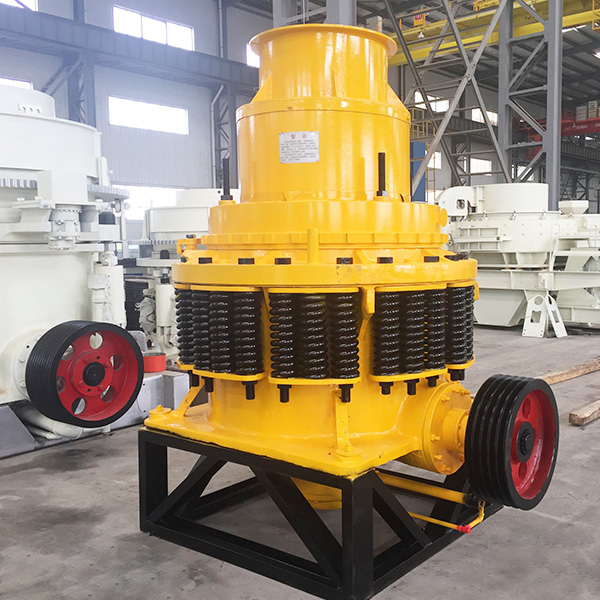

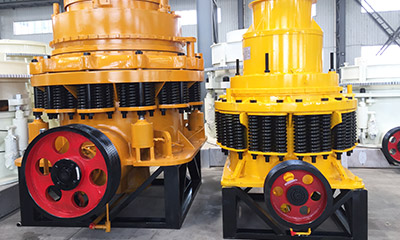

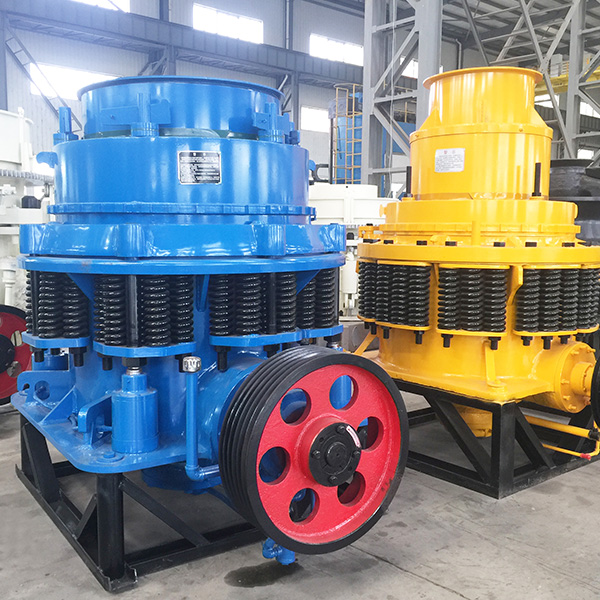

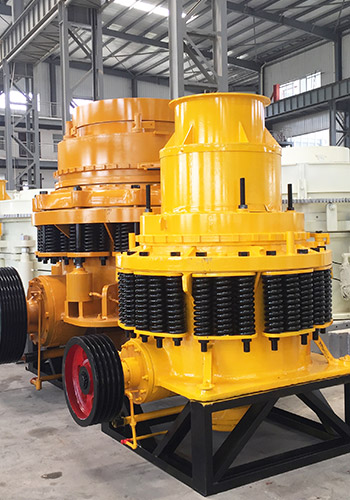

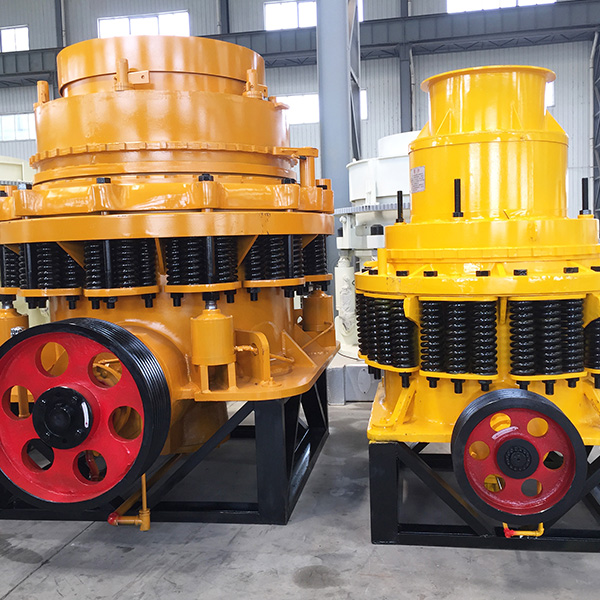

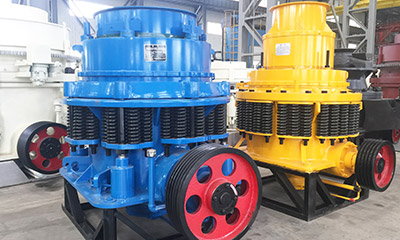

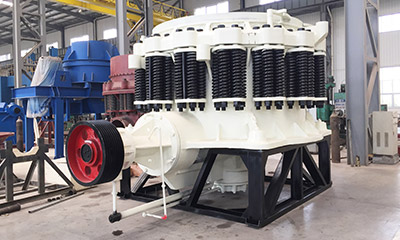

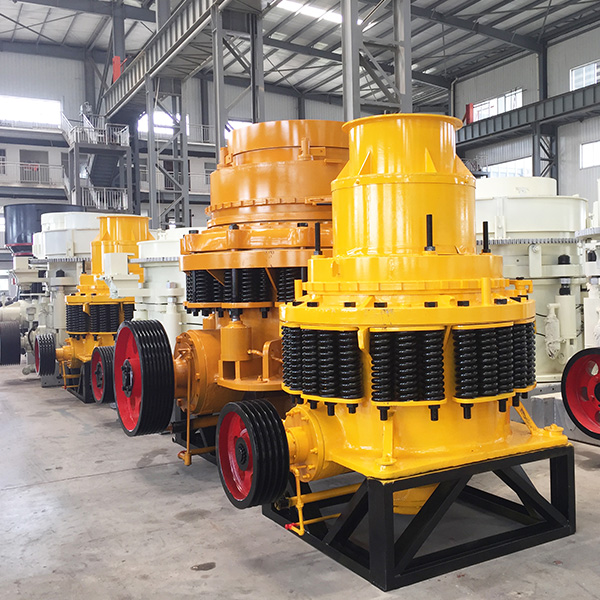

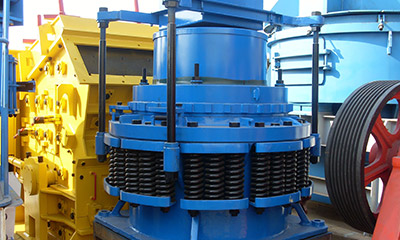

Spring Cone Crusher

introduce

Spring cone crusher is applied to crush above medium hardness ores and rocks. Spring safety device plays the role of overload protection, which will enable the steel piece or exotic materials to pass through the crushing cavity without any damage to the machine. This type of crushing cavity depends upon the mineral purpose. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing , the short head type is applied to super fine crushing. Spring cone crusher is widely used in construction, metallurgy, transportation, hydropower, chemical and Bituminous Concrete industry. Spring cone crusher has many advantages like high efficiency, reliable structure, easy adjustment and low operation cost, etc

15-1000 t/h

Capacity

36-300mm

Feed Size

3-60 mm

Adjusting range of outlet

Get A Question

Chat Now

Send Email

product Feature

Large crushing ratio and high working efficiency.

Perfect lubrication device guarantees machine reliability

High quality wear-resistant parts reduce operating cost

Long service life and extensive use.

Optimized cavity type, better performance

product Deatails

Application: Spring cone crusher can crush many kinds of ores and rocks with above medium hard scale in Aggregates Shaping, Bituminous Concrete, Mechanism Sand, Sand Making, Metal Mine, Chemical, Road Bridge, Railway

product Technical Parameter

Model	Diameter of crushing cone (mm)	Max. feed size (mm)	Discharged size (mm)	Capacity (t/h)	Power(kw)	Speed of eccentric shaft(r/min)	Weight (t)	Overall Dimension (L×W×H) (mm)
PYB600	Φ600	65	12-25	12-25	30	356	5	2800×1300×1700
PYD600	Φ600	35	3-15	5-23	30	356	5.5	2800×1300×1700
PYB900	Φ900	115	15-50	50-90	55	333	10.2	3050×1640×2350
PYZ900	Φ900	60	5-20	20-65	55	333	10.2	3050×1640×2350
PYD900	Φ900	40	3-13	15-50	55	333	10.3	3050×1640×2350
PYB1200	Φ1200	145	20-50	110-200	110	300	24.7	4152×2300×2980
PYZ1200	Φ1200	100	8-25	50-150	110	300	25	4152×2300×2980
PYD1200	Φ1200	50	3-15	18-105	110	300	25.6	4152×2300×2980
PYB1750	Φ1750	215	25-60	280-480	160	245	50.3	4870×3800×4192
PYZ1750	Φ1750	185	10-30	115-320	160	245	50.3	4870×3800×4192
PYD1750	Φ1750	85	5-15	75-230	160	245	50.4	4870×3800×4192
PYB2200	Φ2200	300	30-60	590-1000	260-280	220	80	7705×3430×4852
PYZ2200	Φ2200	230	10-30	200-580	260-280	220	80	7705×3430×4852
PYD2200	Φ2200	100	5-15	120-340	260-280	220	81.4	7705×3430×4852
