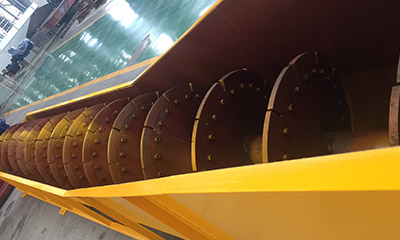

Spiral Sand Washing Machine
Spiral Sand Washing Machine
Spiral Sand Washing Machine
Spiral Sand Washing Machine

Spiral Sand Washing Machine

introduce

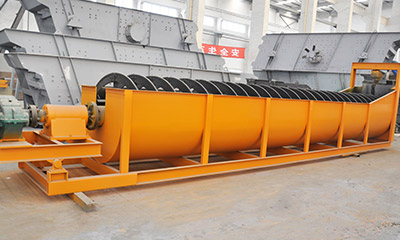

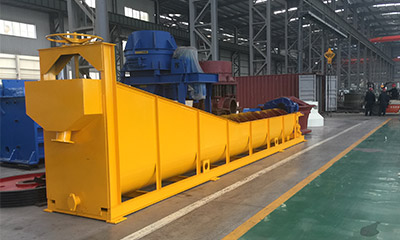

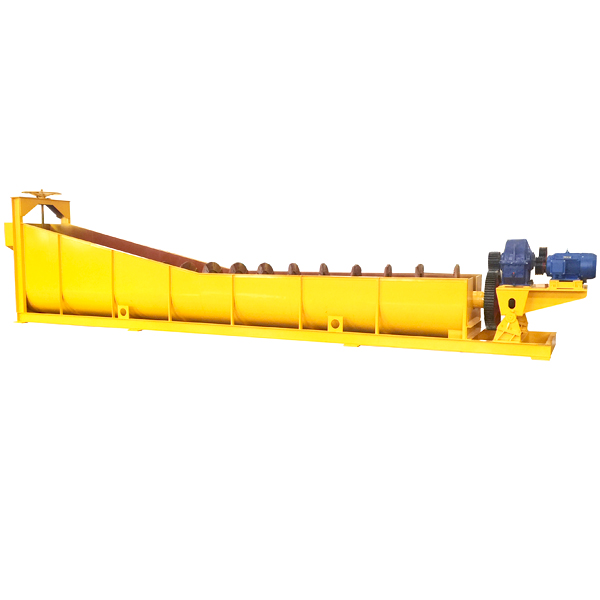

The XSL series of spiral sand washing machine is suitable for washing material after crushing. Small particles suspend in water and flow out through outlet, coarse particles sink down to bottom of groove and they will be pushed to the discharging end by the screw. There are two kinds of spiral sand washing machine: single spin and double spin. Spiral sand washing machine has the feature of high-level cleanliness, reasonable structure, large processing capacity, low power consumption, and less sand loss during sand washing process. Especially the transmission part of sand washing machine is isolated from water and sand. The failure rate is much lower than the current commonly used sand washing machine. It's the best choice for upgrading the domestic sand washing industry. Spiral sand washer also can be used for desliming, dewatering and washing ore. It is widely used in washing, grading, impurity-removal and fine-grained &coarse-grained materials washing operations in roads, hydropower, and construction industries. It is especially suitable for construction and road construction.
XSL508

Model

508

Screw diameter(mm)

6705

Length of Chute (mm)

≦10

Max feeding size(mm)

20

Capacity (t/h)

38

Speed (r/min)

Feature
Working Principle
Technical Parameter
Case
product Feature
High level cleaning and reasonable structure.
Large capacity and small power consumption.
New sealing structure, fully enclosed oil bath transmission device, adjustable overflow weir platele lubrication system, easily changed spare parts and easy maintenance.
product Working Principle

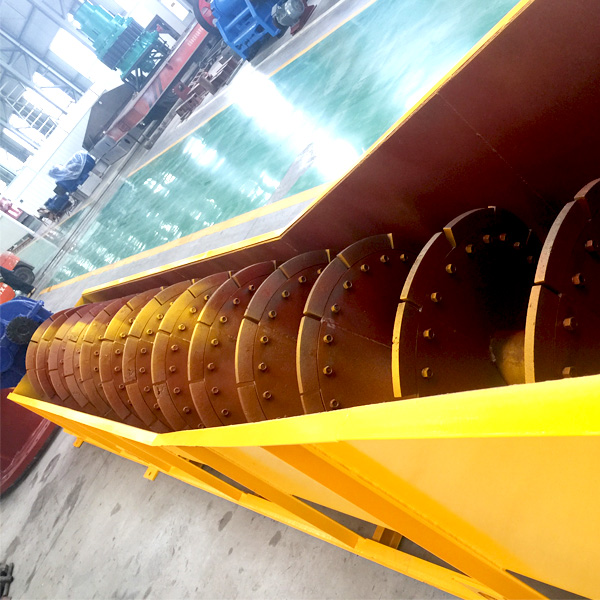

When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.
product Technical Parameter
Model Screw diameter(mm) Length of Chute (mm) Max feeding size(mm) Capacity (t/h) Speed (r/min) Power (kw) Water Consumption(t/h) Overall dimension(L×W×H)(mm) Weight(t)
XSL508 508 6705 ≦10 20 38 5.5 6-60 8000*2343*1430 2.67
XSL610 610 7225 ≦10 40-50 32 7.5 6-63 8000*2050*1400 3.80
XSL762 762 7620 ≦10 50-75 26 11 9-63 8545*2650*3862 5.23
XSL920 920 8026 ≦10 100 18 11 10-80 8715X1632X2075 4.6
2XSL920 920 8026 ≦10 150-180 18 2*11 20-160 8715X2602X2075 7.9
XSL1115 1115 8532 ≦10 175 18 15 20-150 9231X1833X2126 5.6
2XSL1115 1115 8532 ≦10 200-250 18 2*15 40-300 9231X2995X2126 10
