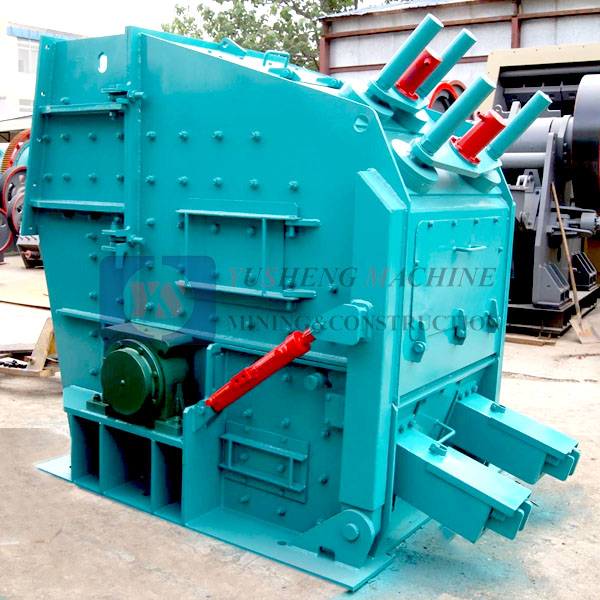

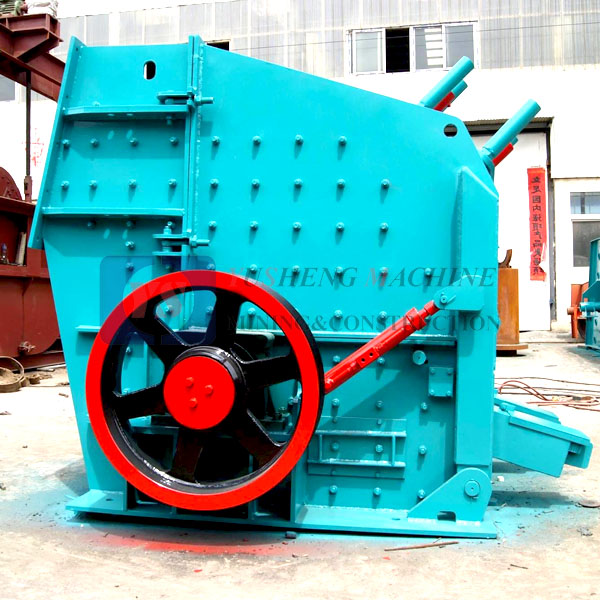

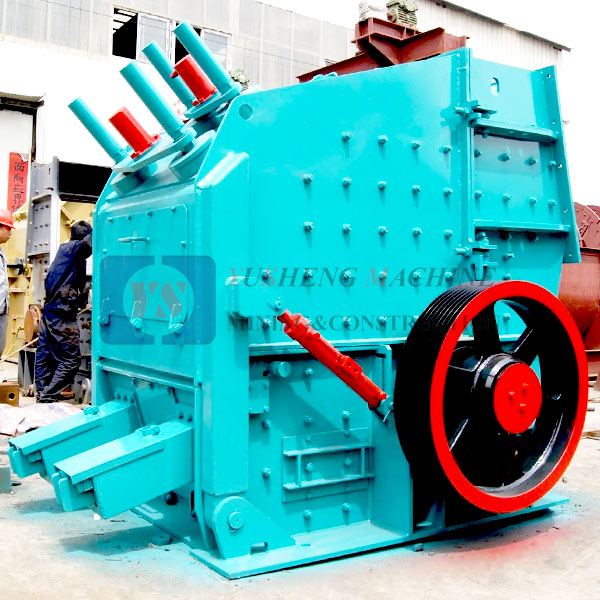

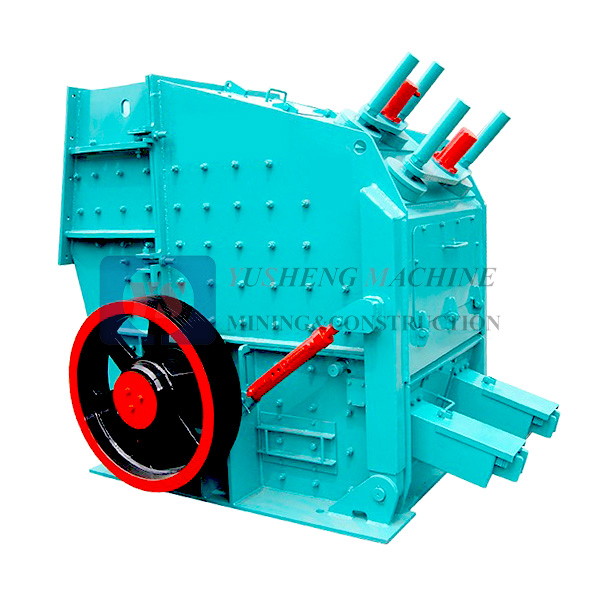

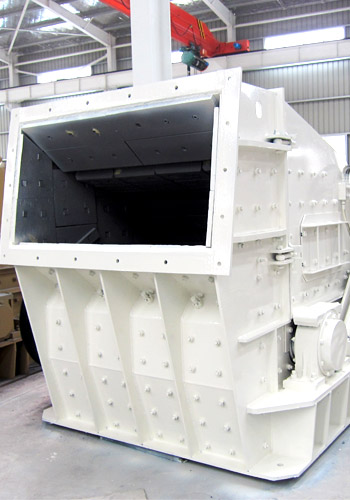

PFW Impact Crusher

introduce

PFW Impact crusher is designed with the latest international technology and the world-class manufacturing process.PFW impact rock crusher impactor crusher have the features of heavy duty rotor design, unique hammer locking system, interchangeable wearing parts, and easy maintenance.Besides.Impact mill rock crusher has wide range of adjustable size, and the product is cubical, fine and even, impactor crusher is the ideal equipment for industries with high demands of stone shape, such as highway, railway, airport and water conservancy project etc.

PFW1315-Ⅱ

Model

1530x1200

Inlet size (mm)

600

Max. feed size (mm)

180-320

Capacity (t/h)

160-200

Power (KW)

Weight (t)

Get A Question

Chat Now

Send Email

product Feature

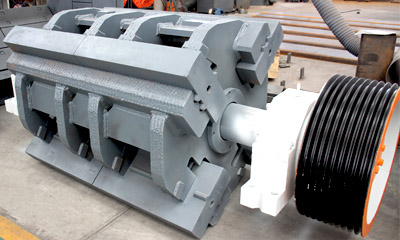

PFW impact crusher have a heavy duty and superior weight rotor, which ensure maximum inertia and superior impact forces, resulting in optimum reduction while maintaining cubical product shape.

Improved adjusting devices reduce the outage and maintenance time.

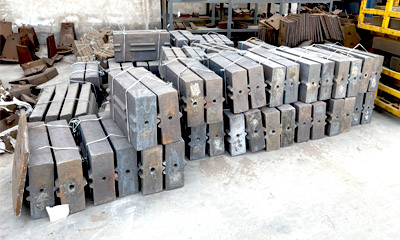

Self-obtained hydraulic open cover can easy to replace quick-wear part.

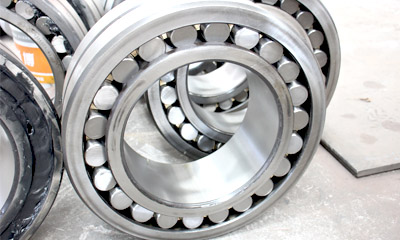

Adopted larger and higher bearing capacity bearings ensure the stable and reliable rotor performance analysis.

product Details

Application: PFW impact crusher is widely used in mining, chemical, cement, metallurgy, construction, refractory materials and ceramic industries for fine grinding.

product Technical Parameter

Two Chambers Technical Parameter

Model	Inlet size (mm)	Max. feed size (mm)	Capacity (t/h)	Power (KW)	Weight (t)
PFW1210-Ⅱ	1030x1100	400	90-160	90-110	17
PFW1214-Ⅱ	1430x1100	500	130-200	132-160	22
PFW1315-Ⅱ	1530x1200	600	180-320	160-200	29
PFW1320-Ⅱ	2030x1200	700	260-450	200-250	35

Three Chambers Technical Parameter

Model	Inlet size (mm)	Max. feed size (mm)	Capacity (t/h)	Power (KW)	Weight (t)
PFW1210-Ⅲ	800x1010	250	70-140	90-110	15
PFW1214-Ⅲ	800x1420	250	90-190	132-160	19
PFW1315-Ⅲ	815x1550	300	150-280	160-200	25
PFW1320-Ⅲ	815x2050	300	250-350	200-250	31
