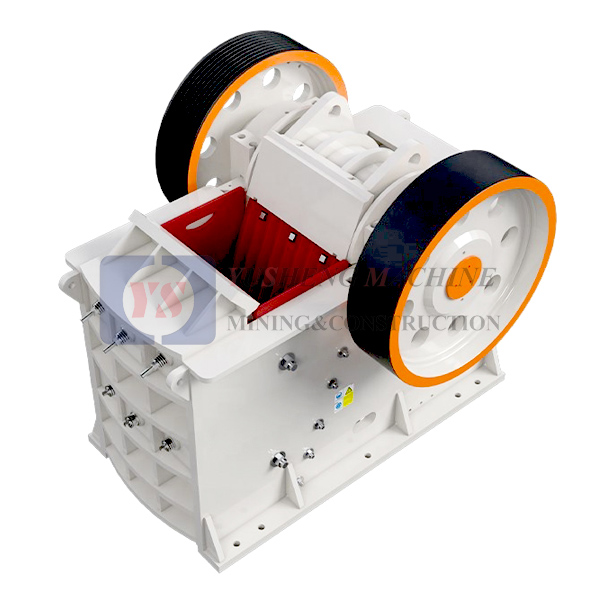

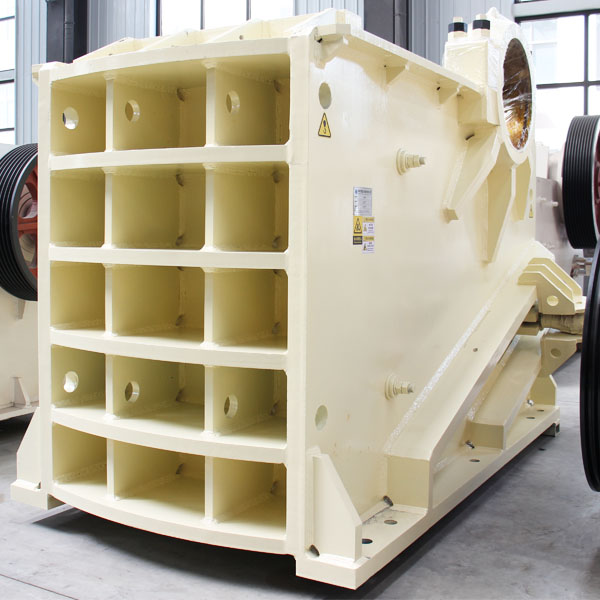

PE/PEX Jaw Crusher

introduce

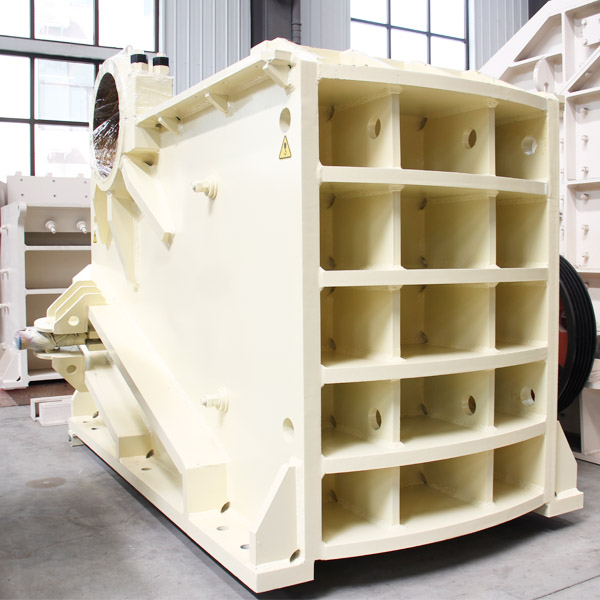

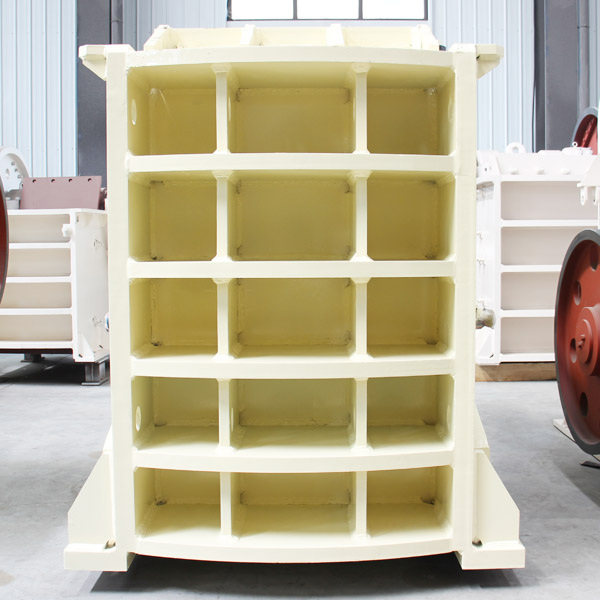

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. This series jaw crusher adopts cast steel rack and swing jaw structure which has the characteristic of high strength and long service life. The PE jaw crusher has bigger feed size, it is suitable for rough crushing or primary crushing; PEX jaw crusher is mainly for a smaller size, and it has a smaller discharge opening, especially suitable for secondary crushing. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

1-1100 t/h

Capacity

210-1020 mm

Feed Size

15-300 mm

Adjusting range of outlet

5.5-180kw

Motor Power

Get A Question

Chat Now

Send Email

product Feature

Large crushing ratio and even discharged materials.

Large and reliable adjusting range of discharged outlet meets various requirements.

Safe and reliable lubrication system, easily changed spare parts and easy maintenance.

Simple structure and low operation cost.

Low noise and little dust pollution.

product Deatails

Application: Jaw crusher is widely used in fields of mining, construction, metallurgy, smelting,highway, hydropower and chemical industries etc.

product Technical Parameter

Model	Inlet size (mm)	Max feeding size (mm)	Adjusting range of outlet (mm)	Capacity (t/h)	Motor (KW)	Weight (t)	Overall dimension (mm)
PE-150	150×250	125	15-45	1.2-3.5	5.5	0.8	950x1100x1100
PE-250	250×400	210	20-60	5-22	15	2.8	1450x1350x1500
PE-400	400×600	350	40-80	18-60	30	7	1700x1800x1650
PE-500	500×750	425	50-100	43-102	55	10.6	2270x2370x2145
PE-600	600×900	500	65-160	51-180	75	16.5	3000x2500x2600
PE-750	750×1060	630	80-180	80-195	110	29	2526x2410x2780
PE-900	900×1200	780	95-180	140-270	132	52	2960x2760x3530
PE-1000	1000×1200	850	195-280	190-310	132	55	3889x2826x3025
PE-1200	1200×1500	1020	150-300	260-510	180	100.9	4930x3548x3702
PEX-150	150×750	120	18-40	8.5-28	15	3.8	1300x1750x1200
PEX-250	250×750	210	25-60	15-35	30	5.5	1400x1750x1400
PEX-250	250×1000	210	25-60	20-65	30	7	1400x1980x1440
PEX-250	250×1200	210	25-60	25-75	45	8.5	1400x2180x1440
PEX-300	300×1300	250	25-90	30-105	75	11	1560x2350x1600

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant
