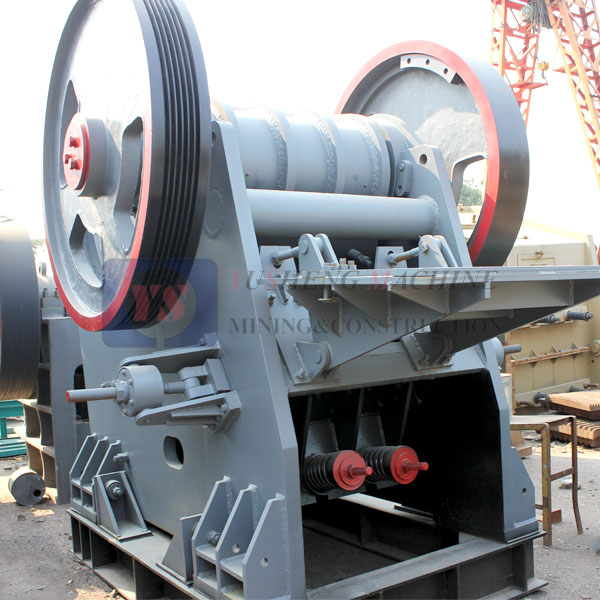

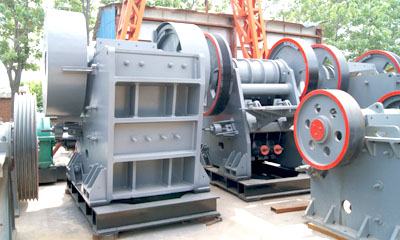

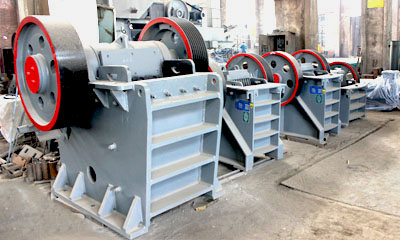

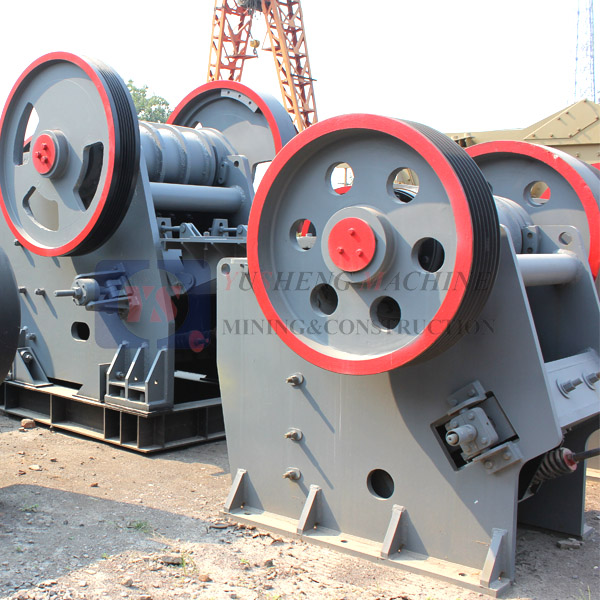

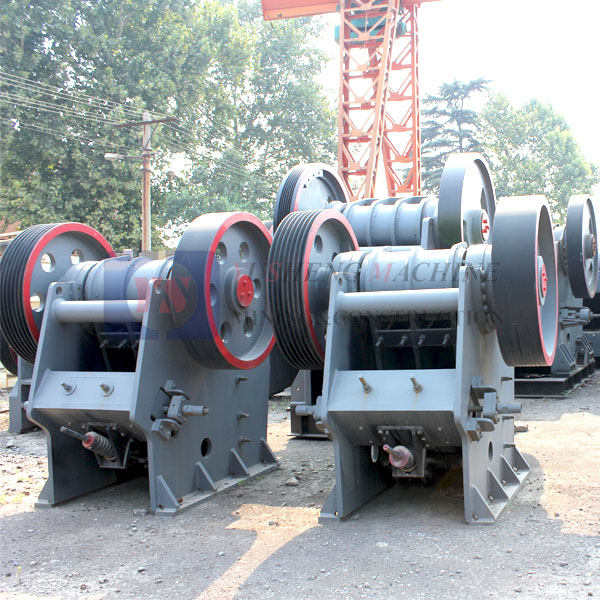

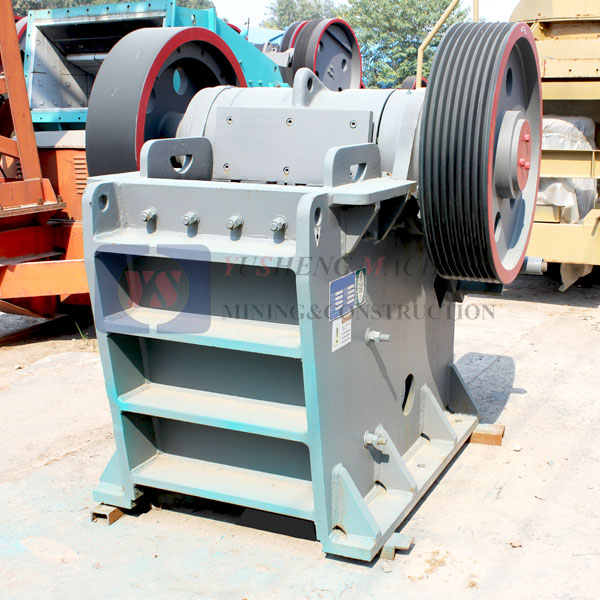

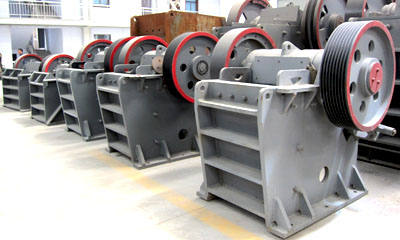

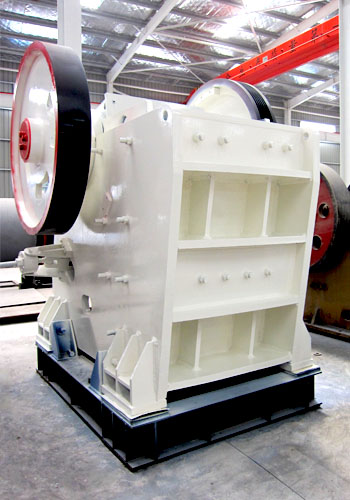

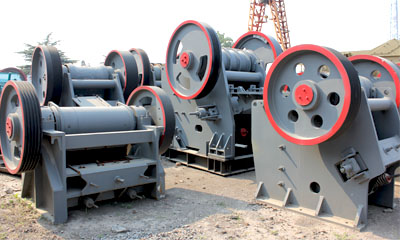

PEV Jaw Crusher

introduce

PEV Jaw Crusher is a new generation product for crushing hard or abrasive stones, based on YUSHENG 20 years machinery manufacturing experience, and adopts three-dimensional design theory to produce. Comparing with traditional Jaw Crusher, it has larger capacity and high crushing ratio, bigger range of feed size, more uniform finished product size, and easier maintenance.

20-498 t/h

Capacity

380-750 mm

Max. Feeding Size

40-220 mm

Discharge Size

7.02-42.5 Tons

Weight

Get A Question

Chat Now

Send Email

product Feature

Symmetrical V-type crushing chamber is adopted to maximize the range of capacity, feed size and crushing ratio.

Bearing seat is designed integrally, so it is greatly reduced processing difficulty, and bearing service life is increased.

Three-dimensional software is adopted to optimize crusher parameters and reduce crusher self-weight, so capacity is increased by more than 30%.

Disassembly frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor base

product Application

It is widely used in fields of mining, construction, smelting, metallurgy, hydropower and chemical industries etc.

product Technical Parameter

Model	Max. Feed Size(mm)	Discharge Size (mm)	Capacity (TPH)	Main shaft Speed(rpm)	Power(kW)	Weight(t)


PEV400x600	380	40-80	20-65	270	30	7.02
PEV500x750	450	50-100	45-107	250	55	10
PEV600x900	500	60-165	70-195	235	75	17
PEV750x1100	630	80-175	136-296	225	110	23.1
PEV860x1100	700	70-200	140-400	210	132	26.5
PEV900x1200	750	100-220	224-498	200	132	42.5

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant

Yusheng has obtained a number of invention licenses, and the products they developed and produced have been exported to many countries and regions in the world.
