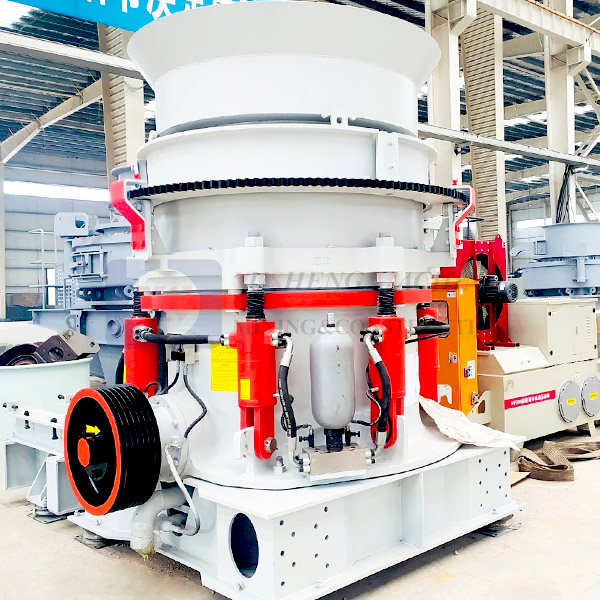

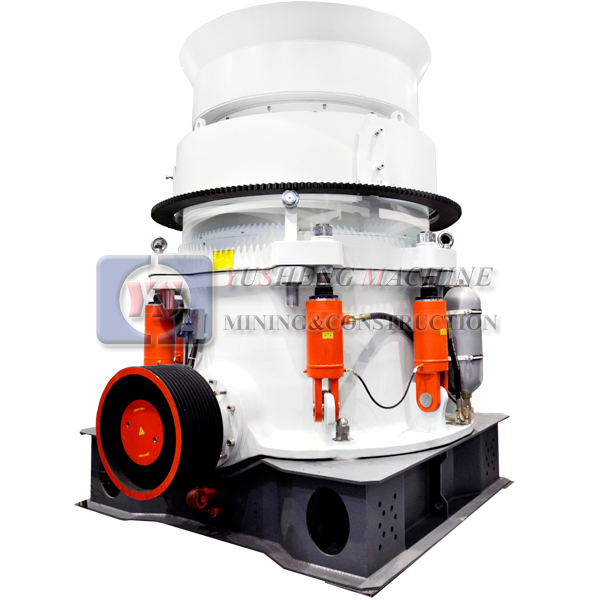

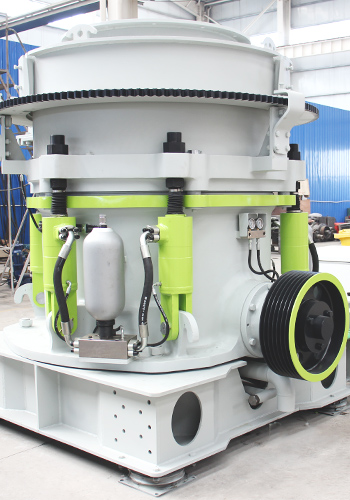

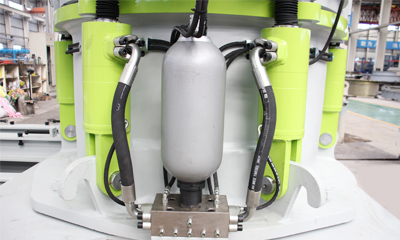

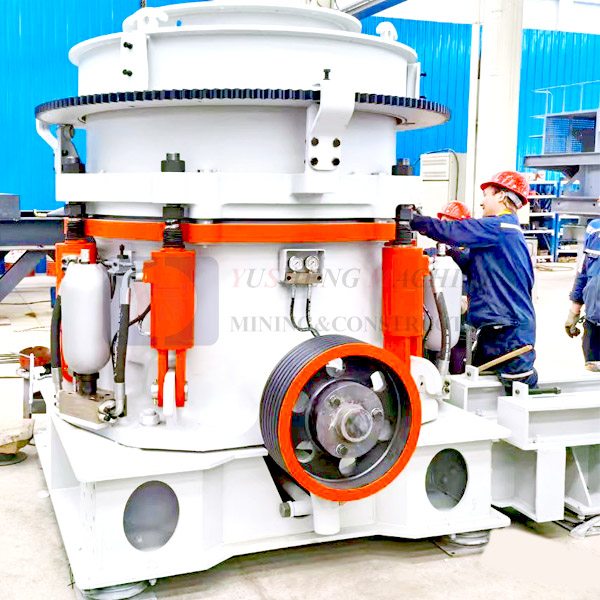

Multi-Cylinder Hydraulic Cone Crusher

introduce

HP series high efficiency multi-cylinder hydraulic cone crusher is a world-level cone crusher developed from the up to the minute technology of America. The multi-cylinder hydraulic cone crusher not only improves the production capacity and crushing efficiency, but also expands the applying area, from limestone to basalt, from stone production to various ore crushing. Cone Rock Crusher has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The cone crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher. Multi cylinder hydraulic cone crusher is often used to crusher limestone, iron ore, cobblestone, nonferrous metallic ores, granite, basalt, quartz rock, sandstone etc.

Secondary Crushing

Type

95mm--353mm

Input Size

90-1200 TPH

Capacity

132-630 KW

Power

Liuan Qiangli

Motor Brand

Optional Air Cooling or Water Cooling

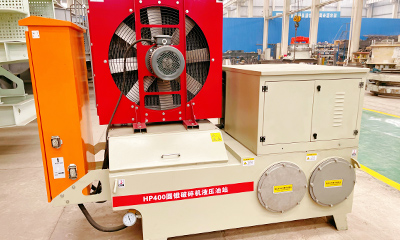

Lubrication System Cooling

Get A Question

Chat Now

Send Email

product Feature

Higher production capacity, better final product particle size; Advanced crushing principle, high performance, Large capacity

Replace crushing cavity if you need medium, fine, and super fine product

Perfect grain composition and cubic particle product, low operating and maintenance cost

Short downtime and long working hours

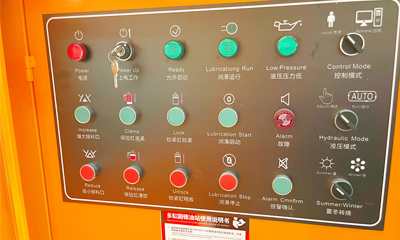

Multiple protection, avoid accidents and damage caused by human incorrect operation

Reliable performance, very low equipment failure rate

product Deatails

Application: In Aggregates Shaping, Mechanism sand, Hydropower, Bituminous Concrete, Metal Mine, Railway, Chemical, Road, Metallurgy, Construction, Highway etc.

product Technical Parameter

Model	Cavity	Standard Type		Short Type		Power	Capacity (t/h)	Weight
Model	Cavity	Feeding Size (mm)	Min Discharging Size (mm)	Feeding Size (mm)	Min Discharging Size (mm)	(kw)	Capacity (t/h)	(T)
HP200	Super coarse					132-200	90-250	14
	Coarse	185	19	76	10
	Medium	125	17	54	6
	Fine	95	13	23	6
	Super Fine			10	5
HP300	Super coarse	230	25			180-250	115-440	19.96
	Coarse	210	20	75	10
	Medium	150	15	50	8
	Fine	105	10	20	6
	Super Fine			20	6
HP400	Super coarse	295	30			280-355	140-630	28.72
	Coarse	250	25	90	10
	Medium	195	20	50	8
	Fine	110	14	40	6
	Super Fine			30	6
HP500	Super coarse	330	30			355-450	175-790	38
	Coarse	285	25	90	13
	Medium	200	20	55	10
	Fine	133	16	40	8
	Super Fine			35	6
HP800	Super coarse	353	32			550-630	260-1200	64.1
	Coarse	297	32	155	13
	Medium	267	25	92	10
	Fine	219	16	33	6
	Super Fine

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

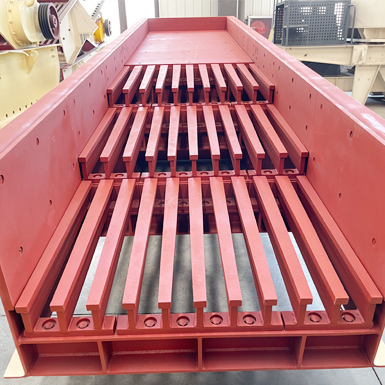

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant

Yusheng has obtained a number of invention licenses, and the products they developed and produced have been exported to many countries and regions in the world.
