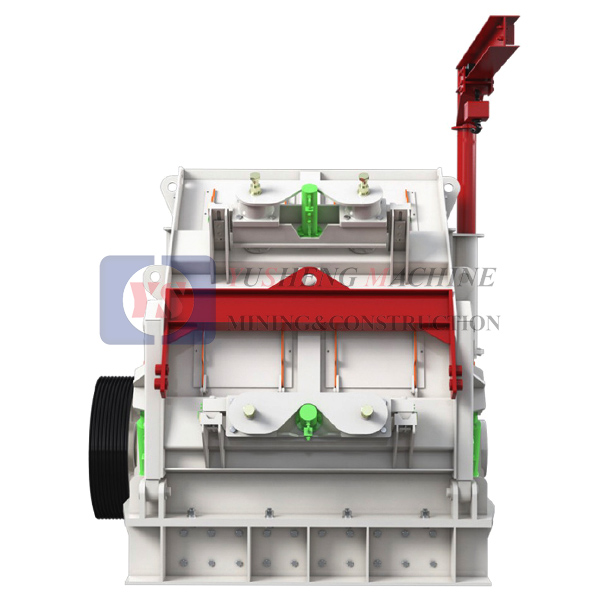

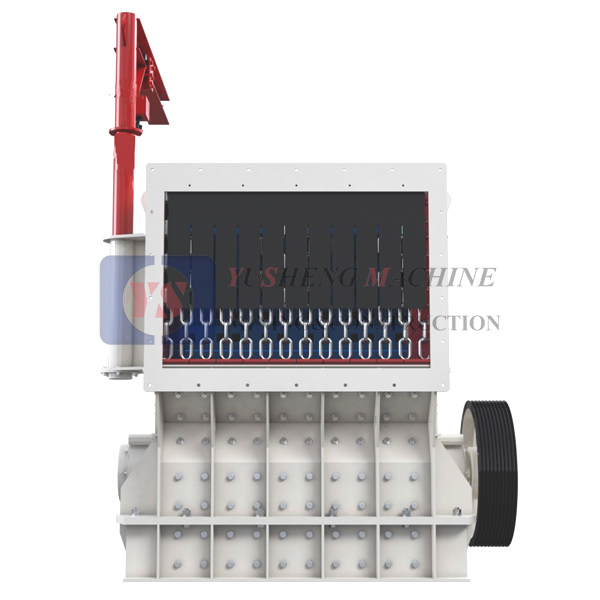

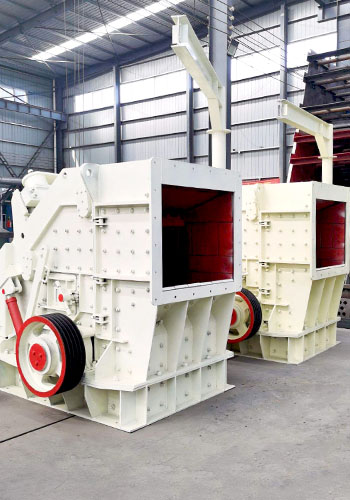

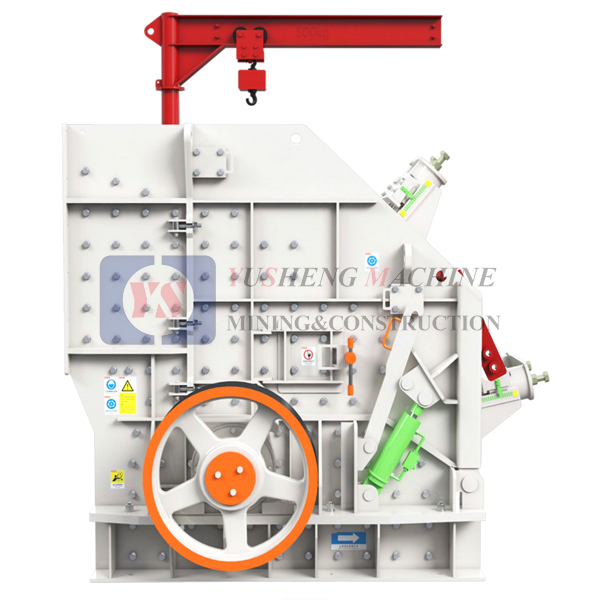

6FX Impact Crusher

introduce

6FX Impact Crusher is a large diameter mining crushing equipment designed by Yusheng technical engineers, the maximum feed can reach 1000mm, compared with the traditional impact crusher to significantly improve the crushing ratio, adjust the special device can be freely converted between primary and secondary crushing, to ensure the unique advantages of the impact crusher grain shape at the same time significantly increase the output.

6FX1315

Model

20-100mm

Product Particle Size

180-500tph

Capacity

200-250kw

Power

400x400x700mm

Max. Feeding Size

Get A Question

Chat Now

Send Email

product Feature

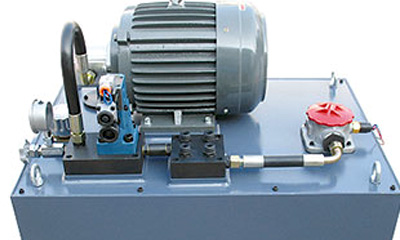

Adopting full-automatic hydraulic adjusting device between rotor and impact plate enable flexibly adjust discharging size

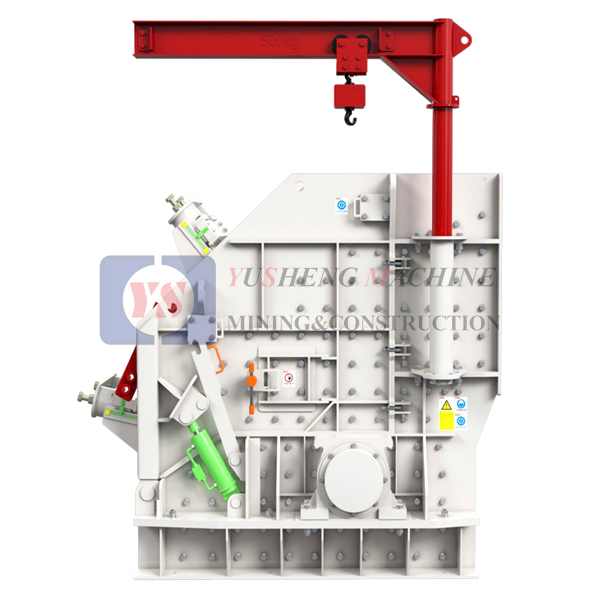

Hydraulic top device and maintenance lifting design can achieve the change of plate hammer and other wearing parts in a short time.

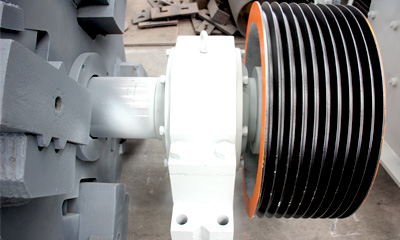

Heavy rotor design is more durable with bigger crushing force.

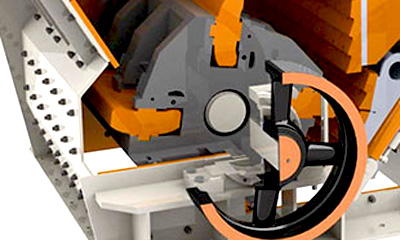

Adopting wedge to fix the plate hammer ensure roller to be firm under high-speed rotation.

product Details

Application: Cement, new building materials, silicate product, chemical fertilizer, refractory material, nonferrous and ferrous metal beneficiation and glass ceramic industries.

product Technical Parameter

Model	Max. Feeding Size (mm)	Product Particle Size(mm)	Capacity (t/h)	Power(kW)
6FX1010	400×400×500	20-100	70-150	90-132
6FX1210	400×400×600	20-100	100-285	110-160
6FX1214	400×400×600	20-100	150-400	160-200
6FX1315	400×400×700	20-100	180-500	200-250
6FX1317	400×400×700	20-100	200-600	200-315
6FX1415	600×600×900	100-200	400-700	315-400
6FX1620	600×600×1000	100-200	600-900	400-500

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant

Yusheng has obtained a number of invention licenses, and the products they developed and produced have been exported to many countries and regions in the world.
