Model
Total Power
Screener
Crawler Brand
Total Weight
Weichai / Cummins

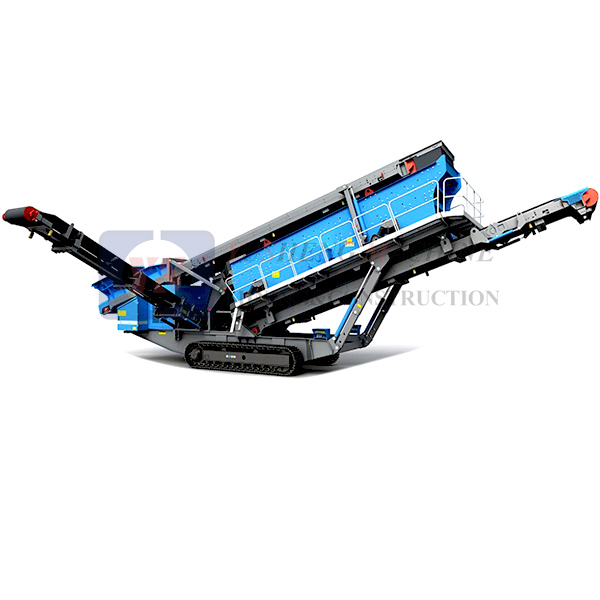

| Crawler-type mobile screening and crushing plant | 2YA1860 crawler-type mobile screening and crushing plant | 2YA2160 crawler-type mobile screening and crushing plant | 3YA1860 crawler-type mobile screening and crushing plant | 3YA2160 crawler-type mobile screening and crushing plant | |||||||||
| Model | Items and specifications | power (kw) | Quantity(set) | Items and specifications | Power (kw) | Quantity(set) | Items and specifications | Power (kw) | Quantity(set) | Items and specifications | Power (kw) | Quantity(set) | |
| Vibrating Screen | Equipment | 2YA1860 | / | 1 | 2YA2160 | / | 1 | 3YA1860 | / | 1 | 3YA2160 | / | 1 |
| Motor | Standard | 22 | 1 | Standard | 30 | Standard | 22 | 1 | Standard | 30 | |||
| Frame | Hydraulic crawler chassis | Standard | / | Standard | / | Standard | / | Standard | / | ||||
| Boat frame | / | 1 | / | 1 | / | 1 | / | 1 | |||||
| Upper sieve conveyor | Specification | B800*11.5m | 7.5 | 1 | B800*11.5m | 7.5 | 1 | ||||||
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |||||||
| Main conveyor | Specification | B1200*11.5m | 11 | 1 | B1200*11.5m | 11 | 1 | ||||||
| Drive method | Electric drum drive | / | 1 | Electric drum drive | Electric drum drive | / | 1 | ||||||
| Under the screen conveyor | Specification | B800*8.5m | 5.5 | 1 | B1000*8.5m | 7.5 | 1 | 5.5 | 1 | B1000*8.5m | 7.5 | 1 | |
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |
| Large material conveyor | Specification | B500*7m | 4 | 1 | B650*7m | 5.5 | 1 | 4 | 1 | B650*7m | 5.5 | 1 | |
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |
| Medium material conveyor | Specification | B500*9.5m | 4 | 1 | B650*9.5m | 5.5 | 1 | 4 | 1 | B650*9.5m | 5.5 | 1 | |
| Drive method | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | Electric drum drive | / | 1 | |
| Single power system | Walking engine | Yuchai diesel engine | 78 | 1 | Yuchai diesel engine | 78 | 1 | Yuchai diesel engine | 78 | 1 | Yuchai diesel engine | 78 | 1 |
| Dual power system | Generator set | Yuchai diesel engine | 100 | 1 | Yuchai diesel engine | 100 | 1 | Yuchai diesel engine | 100 | 1 | Yuchai diesel engine | 100 | 1 |
| Electrical System | Electric control cabinet | Host soft-start, CHINT electrical components. | / | 1 | Host soft-start, CHINT electrical components. | / | 1 | Host soft-start, CHINT electrical components. | / | 1 | Host soft-start, CHINT electrical components. | / | 1 |
| Matching | Belt Conveyor Folding Cylinder | 1 | Belt Conveyor Folding Cylinder | 1 | Belt Conveyor Folding Cylinder | 1 | Belt Conveyor Folding Cylinder | 1 | |||||
| Hydraulic pumps, valves, stations and tubing accessories | 1 | Hydraulic pumps, valves, stations and tubing accessories | 1 | Hydraulic pumps, valves, stations and tubing accessories | 1 | Hydraulic pumps, valves, stations and tubing accessories | 1 | ||||||
| Dimensions(m)L×W×H | Working size15*16.8*5.3 | Transport size17.5*3.8*3.5 | Working size15.3*17.2*5.5 | Transport size18*4.1*3.65 | Working size:15*16.8*5.3 | Transport size17.5*3.8*3.5 | Working size15.3*17.2*5.9 | Transport size18*4.1*4.05 | |||||
| Weight (t) | Single-power model30tDual-power models31t | Single-power model32tDual-power models33t | Single-power mode:31t Dual-power models:32t | Single-power model33t Dual-power models34t | |||||||||
| Power (kw) | Single-power model: 43kw(not including walking engine power),Dual-power models: 43kw(not including generator set power) | Single-power model: 59.2kw(not including walking engine power),Dual-power models: 59.5kw(not including generator set power) | Single-power model47kw (not including walking engine power) Dual-power models47kw (not including generator set power) | Single-power model 65kw (not including walking engine power) Dual-power models65kw (not including generator set power) | |||||||||
