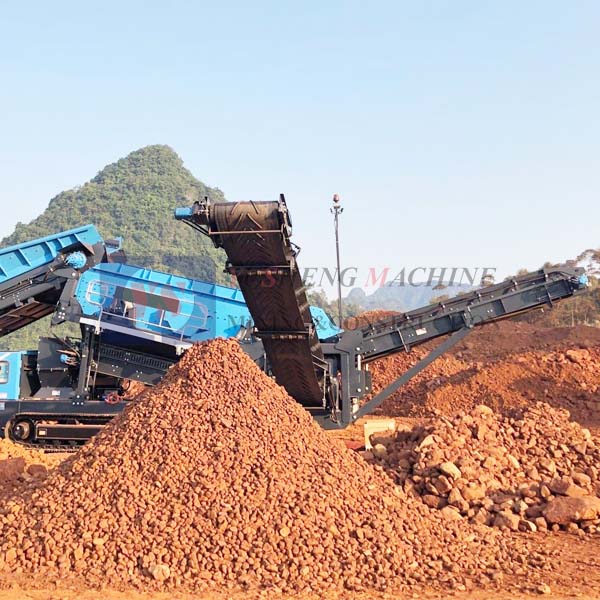

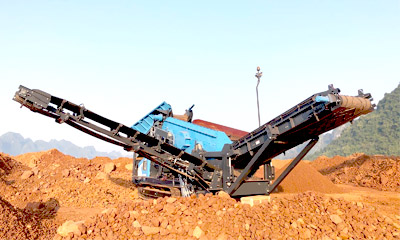

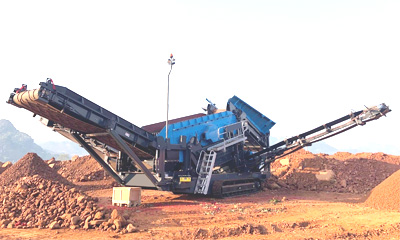

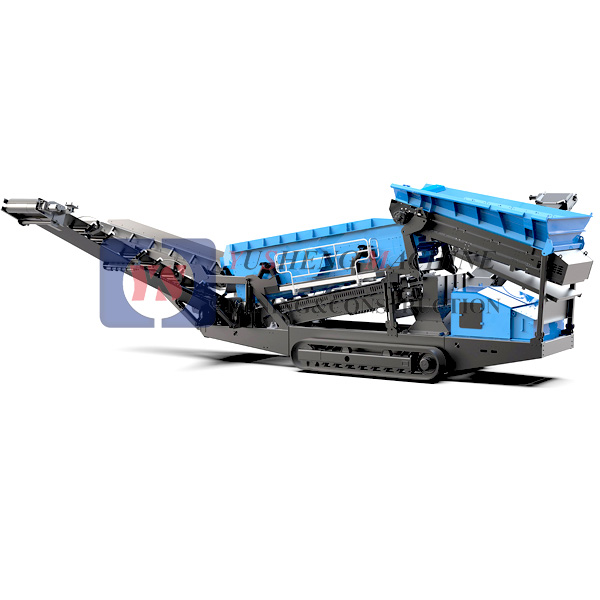

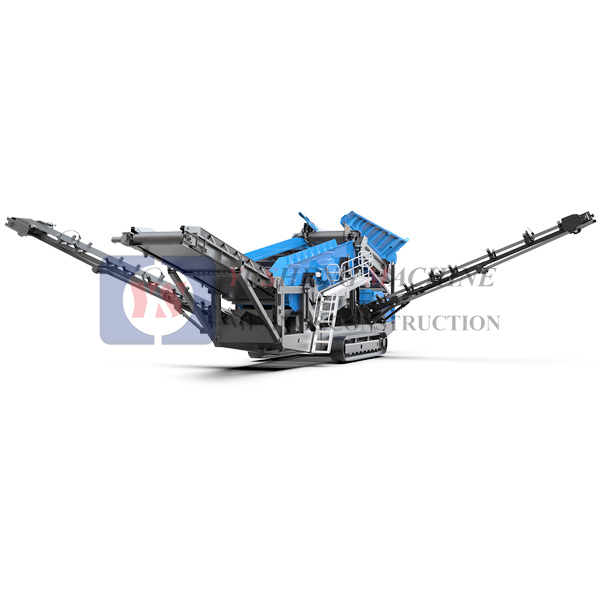

Mobile Screener and Scalper

introduce

Tracked heavy duty mobile screener and scalper design combined with unique screen surface media, top 3D grid screen plate with bottom screen surface structure, mobile scalping screen can be highly effective in screening and processing of wet and sticky materials such as construction waste, mixed compost, topsoil, asphalt recycled material, with good anti-blocking effect and better application scenarios.

B1200

Main Belt Width

5000x1570 mm

Screener

5 m3

Hopper Volume

200-500 TPH

Capacity

Strickland Tracks

Crawler Brand

3850 mm

Feeding Height

Get A Question

Chat Now

Send Email

product Feature

The discharge end of the screen box can be hydraulically jacked up 500mm to increase the screen maintenance and replacement space.

A variety of screening media on the top screen surface can be selected, which can flexibly respond to different material processing; modular structure design is adopted to effectively reduce the use of maintenance costs.

The heavy-duty chain plate feeder combines the top layer protection screen surface design to effectively respond to the impact of large size materials while protecting the relaxed screen surface below, reducing the pressure on the relaxed screen surface and extending its service life.

The bottom screen surface adopts relaxed structure design, which accelerates the material loosening and rapid stratification, prevents the critical particles from blocking the screen holes, and makes the fine particles have high passing rate.

product Details

product Technical Parameter

Equipment Name & Specification		YSH-0515
Chain-plate feeder	Width*Length	1000x3800	mm
Chain-plate feeder	Discharging Height	4000	mm
Pre-Screener	Type	Double Layer Heavy Duty Circular Vibrating Screen
Pre-Screener	Width*Length	1570x5000	mm
Main Belt Conveyor	Width	1200	mm
Main Belt Conveyor	Discharging Height	2991	mm
Medium-fine Aggregate Belt Conveyor	Width	800	mm
Medium-fine Aggregate Belt Conveyor	Discharging Height	3373	mm
Fine Aggregate Belt Conveyor	Width	800	mm
Fine Aggregate Belt Conveyor	Discharging Height	3461	mm
Belt Conveyor under screen	Width	1200	mm
Belt Conveyor under screen	Discharging Height	2040	mm
Engine	Brand	Scania Diesel Engine, Tier 4
Track	Width	400	mm
	Center Distance	3237	mm
	Walking Speed	1	Km/h
Feeder Hopper	Feeding Height	4150	mm
Feeder Hopper	Feeding Width	3191	mm
Equipment Weight		36	Ton

Related Case

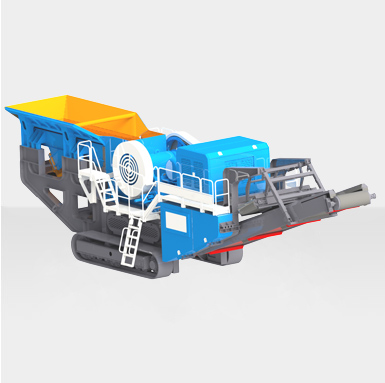

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

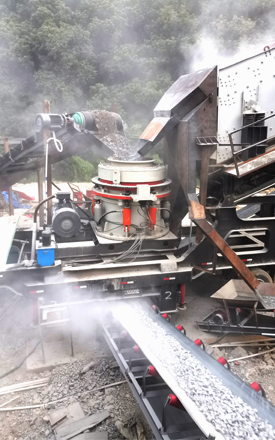

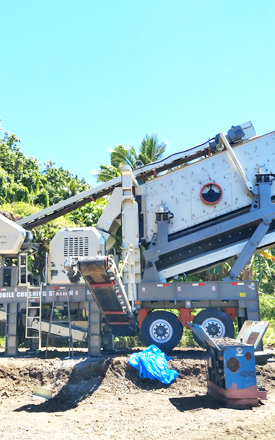

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

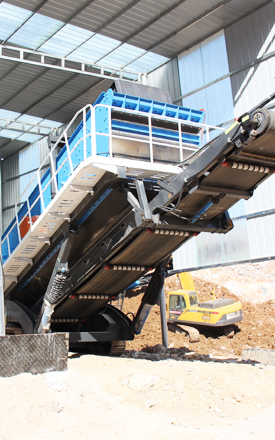

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)
