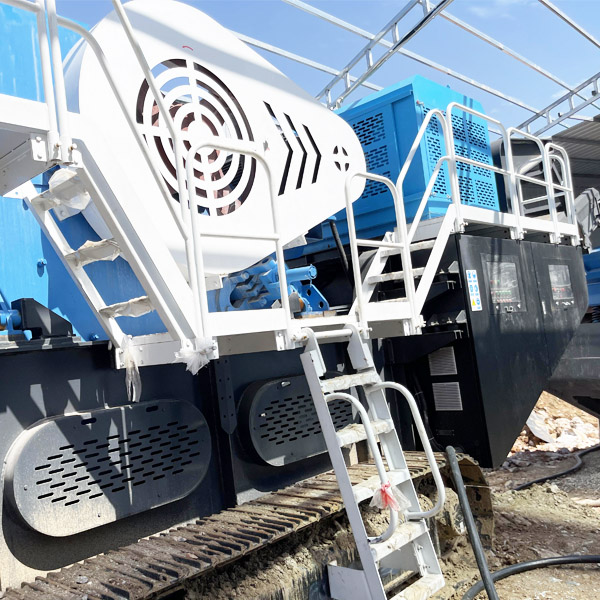

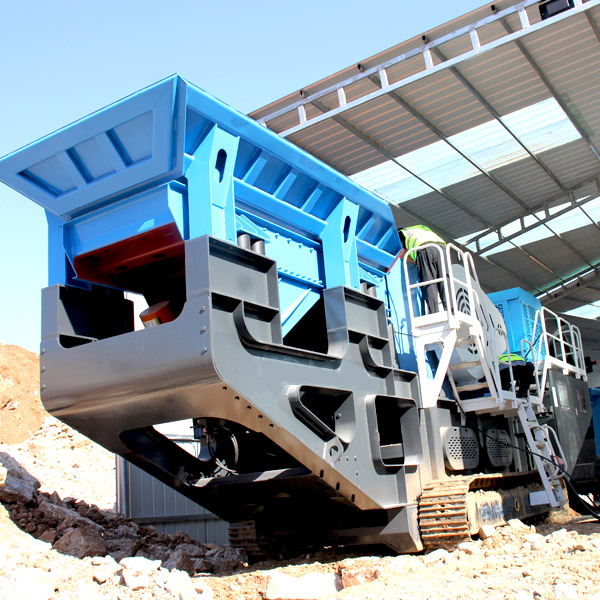

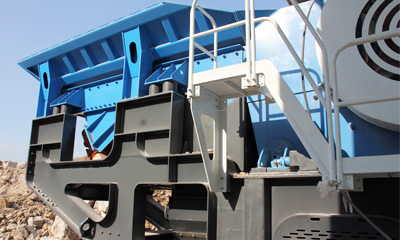

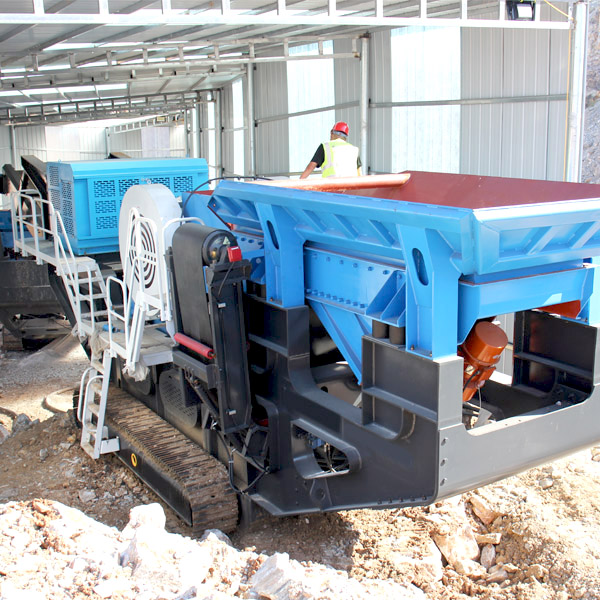

Crawler Mobile Jaw Crusher
Crawler Mobile Jaw Crusher
Crawler Mobile Jaw Crusher
Crawler Mobile Jaw Crusher

Crawler Mobile Jaw Crusher

introduce
Crawler mobile jaw crushing station is a kind of high efficiency crushing equipment. The chassis of crawler mobile crushing plant adopts crawler type full rigid ship structure with the feature of high strength, low grounding ratio and good trafficability. Through wireless remote control, the crawler mobile jaw crusher can be easily driven to the trailer and transported to the working site. Because there is no assembly time, the equipment can be put into operation as soon as it arrives at the work site. Jaw crusher takes up less space, has larger crushing ratio, runs more smoothly, and has more advantages in transportation, installation, maintenance and adjustment. It is especially suitable for fixed crushing production line and mobile crushing station. Users can adopt various configurations according to the types of raw materials, scale and requirements of finished products. Crawler mobile jaw crushing station greatly expands the concept field of coarse crushing operation.
≤750mm

Feed size

100-300T/H

Capacity

JC116

Jaw Crusher Model

Cummins

Diesel Engine

Strickland Tracks

Crawler Brand

Feature
Deatails
Technical Parameter
Case
product Feature
Use special diesel engine for construction machinery, with large torque
Cummins diesel engine has low fuel consumption and low noise
The engine is equipped with a low temperature preheating starter device, which can conquer the low temperature environment of -25℃
The product is light in weight, small in size, suitable for working in narrow places
In situ turning can be realized, standard configuration, quick change device
Save fuel, the fuel saving rate is as high as about 25%
product Deatails
Applicable materials: river pebble, quartz sand, granite, basalt, iron ore, limestone, quartz stone, etc.
Application range: The crawler mobile jaw crushing station is mainly used for coarse and intermediate crushing when crushing materials. It is widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries, the material compressive strength is 320MPa.
product Technical Parameter
Crawler type mobile jaw crushing plant C96 crawler type mobile jaw crushing plant C106 crawler type mobile jaw crushing plant C120 crawler type mobile jaw crushing plant
Model Items and specifications power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set)
Feeding equipment Model DZDT3895 / 1 DZDT1145 / 1 DZDT1245 / 1
Vibration motor Standard 5.5 2 Standard 7.5 2 Standard 9 2
Crushing equipment Equipment C95 / 1 C106 / 1 C120 / 1
Triangle belt Standard / 1 Standard / 1 Standard / 1
Motor Standard 90 1 Standard 110 1 Standard 132 1
Frame Hydraulic crawler chassis Standard / 1 Standard / 1 Standard / 1
Boat frame / 1 / 1 / 1
Main conveyor Specification B800*10.5m 7.5 1 B1000*11m 11 1 B1200*12m 15 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Side out conveyor Specification B500*4m 3 1 B650*4m 3 1 B650*4m 3 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Magnetic separator Specification RCYQ-8 1.5 1 RCYQ-10 2.2 1 RCYQ-10 2.2 1
Drive method Reducer / 1 Reducer / 1 Reducer / 1
Single power system Walking engine Yuchai diesel engine 106 1 Yuchai diesel engine 106 1 Yuchai diesel engine 145 1
Dual power system Generator set Yuchai diesel engine 200 1 Yuchai diesel engine 200 1 Yuchai diesel engine 300 1
Electrical System Electric control cabinet Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1 Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1 Frequency conversion speed regulation of feeder vibration motor, host soft start, CHINT electrical components. / 1
Matching Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size14.2*4.2*3.9 Transport size14.2*3*3.5 Working size15.5*4.5*4.1 Transport size15.5*3.2*3.7 Working size16*4.8*4.3 Transport size16*3.7*3.9
Weight (t) Single-power model38tDual-power models40t Single-power model45tDual-power models47t Single-power model65tDual-power models67t
Power (kw) Single-power model: 113kw(not including walking engine power),Dual-power models: 113kw(not including generator set power) Single-power model: 141.2kw(not including walking engine power),Dual-power models: 141.2kw(not including generator set power) Single-power model: 170.2kw(not including walking engine power),Dual-power models: 170.2kw(not including generator set power)
