YSM-4 Series Combined Mobile Crushing Plant

introduce

The mobile crushing plant greatly breaks the limited way of coarse and fine crushing operations. Portable mobile crushing plant design philosophy is to stand in the customer's position to eliminate the obstacles in crushing process such as the unfixed crushing ground poor production environment and complex basic configuration. Combination of crushing and sieving can be flexibly configured to meet different needs of customers.

YSM4 PY600

Model

≤340

Max. Feeding Size

Number of Axles

16-65 TPH

Capacity

PY900

Secondary Crusher

PE400x600

Primary Crusher

Get A Question

Chat Now

Send Email

product Feature

Overload and iron-removal protection system can protect machine from damage.

Hydraulic lifing and desending design can reduce workload.

Folded bunker reduces the height of crushing staion and increases passing rate of construction materials.

Preliminary screening design removes muck and impurities from material effectively.

product Details

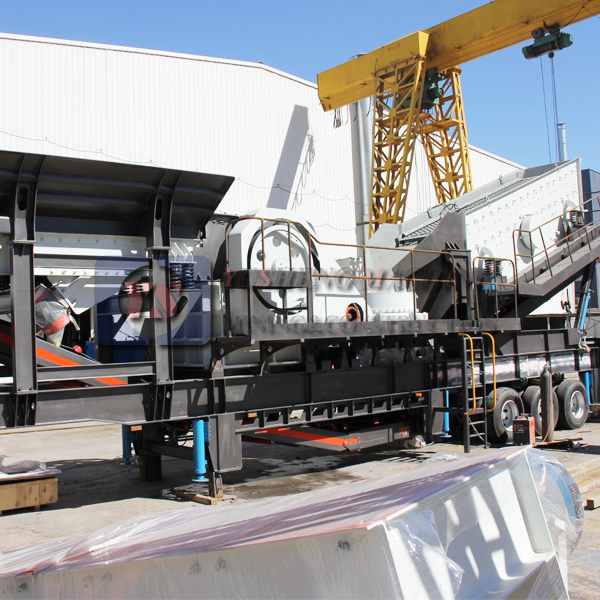

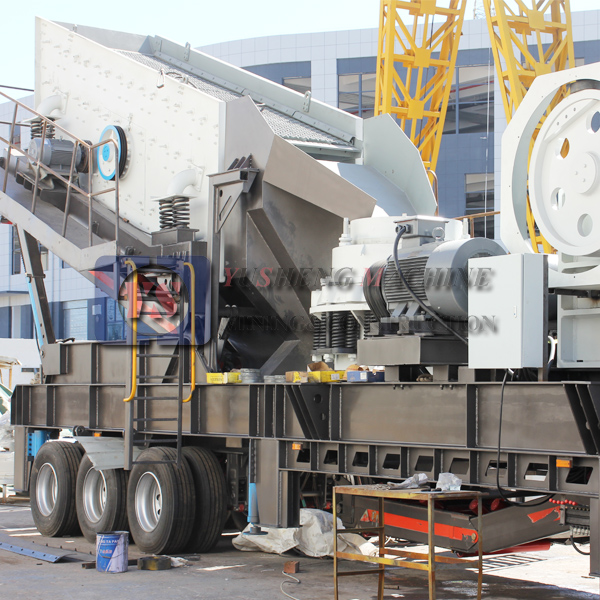

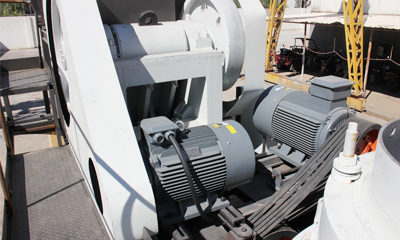

YSM series tire mobile crushing station is equipped with vibrating feeders, primary and secondary crushers, screening machines, belt conveyors and other equipment on one chassis, providing a complete set of crushing and screening operations, portable mobile crushing plant is suitable for small and medium output, integrated automatic coarse, fine two-stage crushing and screening field.

product Technical Parameter

Model	Vibrating Feeder	Primary Crusher	Secondary Crusher	Vibrating Screen	Max Feed Size(mm)	Number of Axles	Main Conveyor	Capacity(t/h)	Transportation Dimension (mm)
YSM4 PY600	ZSW3090	PE400×600	PY600	YA1237	≤340	3	B650	16-65	15500x2800x4200
YSM4 PY900	ZSW3090	PE400×600	PY900	YA1548	≤340	3	B800	16-65	16500x2850x4200
YSM4 CSV110	ZSW3090	PE500×750	CSV110	YA1848	≤425	3	B1000	50-100	16500x2950x4200
YSM4 PY900	ZSW3090	PE500×750	PY900	YA1848	≤425	3	B800	50-100	16500x2950x4200
YSM4 PF1010	ZSW3090	PE400×600	PF1010	YA1548	≤340	3	B800	16-65	15500x2800x4200
YSM4 PF1210	ZSW3090	PE500×750	PF1210	YA1848	≤425	3	B1000	50-100	16500x2850x4200
YSM4 PF1214	ZSW3896	PE600×900	PF1214	YA1848	≤500	3	B1200	60-160	16500x2950x4200

Related Case

Jaw Crusher is widely used as primary and secondary crushing equipment to crush material with compression strength less than 320Mpa. It’s widely used in mine, metallurgic industry, chemical industry, building material, highway, railway, water conservancy etc.

40-60TPH Mobile Cone Crusher in Costa Rica

Configuration：vibrating feeder ,jaw crusher, spring cone crusher, circular vibrating screen, belt conveyor, hydraulic system etc.

150TPH Mobile Crushing Plant in Yunnan

Configuration：YSM-3 Mobile Crushing Plant + XSD Series Sand Washer

200TPH Mobile Crushing and Screening Plant( Sand Making Machine, Screening Machine)

Configuration：5X9532 Mobile Sand Making Machine + 3YA2160 Vibrating Screen

100TPH Mobile Crusher Plant in Philippines

Configuration：YSM-4 Mobile Crusher Plant

Yusheng has obtained a number of invention licenses, and the products they developed and produced have been exported to many countries and regions in the world.
