Model
Max. Feeding Size
Feeding volume (t/d)
Feeding density (%)
Stroke (mm)
Frequency ( t/s)
| Name | bed surface for coarse sand | bed surface for fine sand | bed surface for slurry | |
| Bed dimension | Length (mm) | 4450 | 4450 | 4450 |
| transmission end width (mm) | 1855 | 1855 | 1855 | |
| concentrate ore width (mm) | 1546 | 1546 | 1546 | |
| Max Feeding Size (mm) | 2 | 0.5 | 0.15 | |
| Feeding volume (t/d) | 30-60 | 10-20 | 15-25 | |
| Feeding density (%) | 25-30 | 20-25 | 15-25 | |
| stroke (mm) | 16-22 | 11-16 | 8-16 | |
| Frequency ( t/s) | 45-48 | 48-53 | 50-57 | |
| Cross Slope of Surface | 2.5°-4.5° | 1.5°-3.5° | 1°-2° | |
| Mineral dressing area (㎡) | 7.6 | 7.6 | 7.6 | |

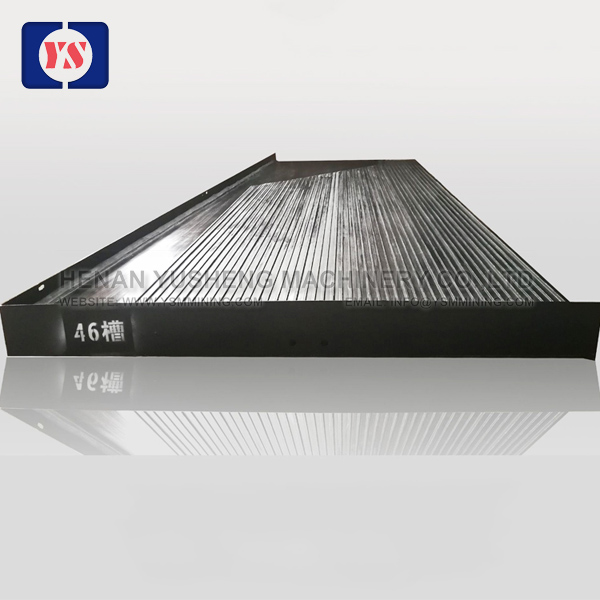

| Shape of bed surface | Rectangle | indention | Triangle | |
| Motor Power (KW) | 1.1 | 1.1 | 1.1 | |

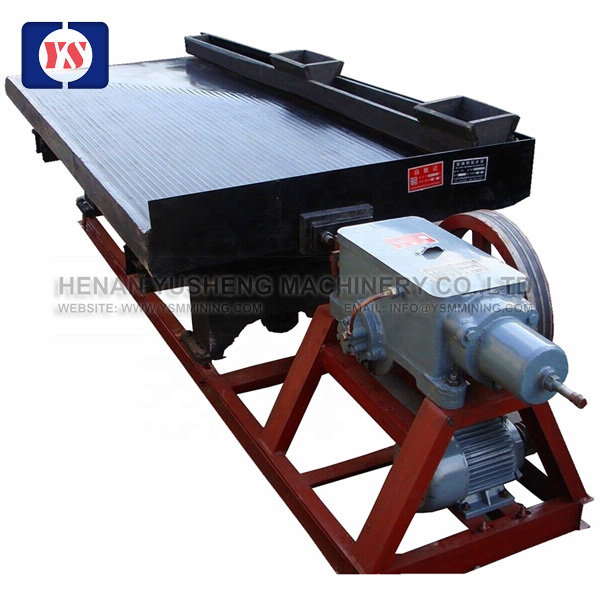

| Driving type | Eccentric link structure | |||
