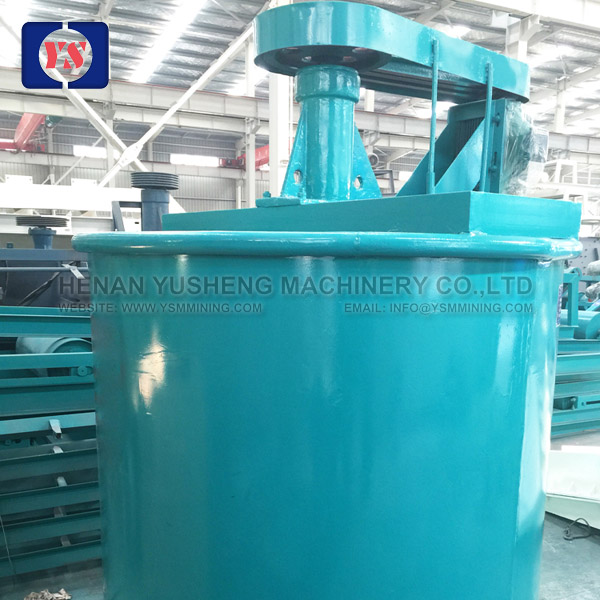

Agitation Tank

introduce

Agitation tank is suitable for various metal ores, mainly used for stirring before flotation, so that the reagent and ore slurry are fully mixed, and can also be used for stirring other non-metallic minerals.
This agitation tank can increase reaction time and strengthen reaction quality of the drug.

XB-1000

Model

1000

Internal diameter (mm)

0.58

Volume (m3)

530

Impeller speed (r/min)

300

Impeller diameter (mm)

2.2

Motor Power(kw)

Get A Question

Chat Now

Send Email

product Feature

Strong agitating capacity;

High circulating ability;

Easy to maintenance;

Uniquely designed impeller;

product Details

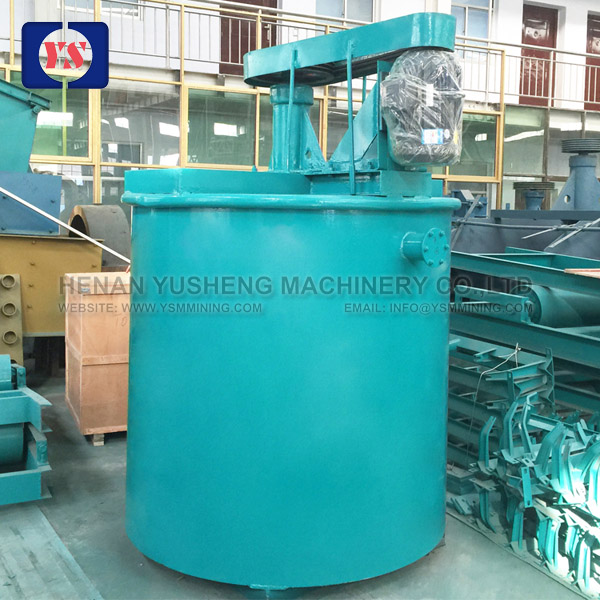

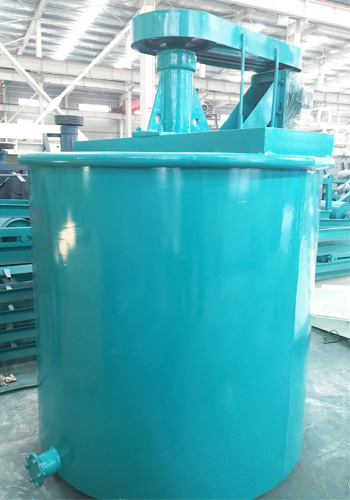

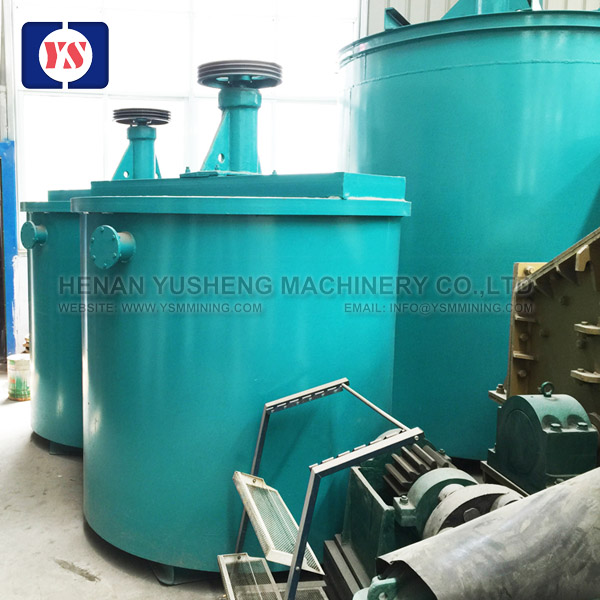

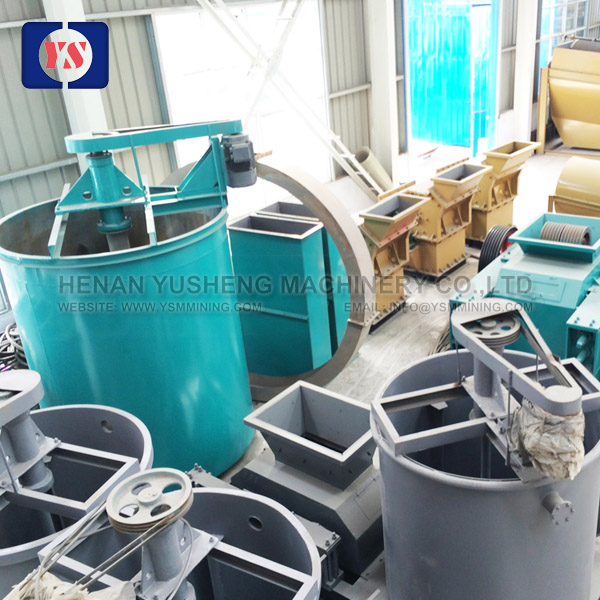

The motor is driven by the V-belt drive instead of the rotating impeller to rotate. The medicine and the pulp are fully mixed and uniform, and the reaction time of the medicine is increased. The necessary equipment for strengthening the quality of the medicine reaction.The agitation tank is suitable for all kinds of metal ores, mainly used for mixing before flotation. It is to mix the agent and the slurry fully, and it can also be used for mixing other non-metallic minerals. It is used for the concentration of not more than 30% (calculated by weight) and the particle size of the fixed component is less than 1mm. Its form is a flat-bottomed barrel with a circulating spiral impeller mechanical stirring type.

product Technical Parameter

Model	Internal diameter (mm)	Internal Height (mm)	Volume (m3)	Impeller speed (r/min)	Impeller diameter (mm)	Weight (t)	Motor power		Dimension (LxWxH) (mm)
Model	Internal diameter (mm)	Internal Height (mm)	Volume (m3)	Impeller speed (r/min)	Impeller diameter (mm)	Weight (t)	Model	Power(KW)	Dimension (LxWxH) (mm)
XB-500	500	500	0.098	600	200	0.15	Y90L-6	1.1	600×566×954
XB-750	750	750	0.33	530	255	0.6	Y90L-4	1.5	1131×880×1241
XB-1000	1000	1000	0.58	530	300	0.99	Y100L1-4	2.2	1131×1130×1492
XB-1200	1200	1200	1.4	235	400	1.05	Y132M1-6	4	1500×1480×1800
XB-1500	1500	1500	2.2	355	500	1.2	Y132M2-6	5.5	1750×1640×2190
XB-2000	2000	2000	5.46	230	550	1.6	Y160M-6	7.5	2380×2162×2850
XB-2500	2500	2500	11.2	230	650	3.44	Y160L-6	11	3036×2716×3543
XB-3000	3000	3000	19.1	210	700	4.61	Y225S-8	18.5	3604×3216×4250
XB-3500	3500	3500	30	230	850	7.28	Y225M-8	22	3940×3766×5386
