What Are the Classifications of Tracked Mobile Crushing Screening Plants
Track mounted mobile crushing plants has tracked jaw crusher, tracked hammer crusher, tracked impact crusher, tracked cone crusher etc, so why do they have these classifications, what is the crushing method, and what will be the difference in the main performance? The following will be compared and analyzed one by one from the crushing plant's working mode, performance, applicable stone, etc.
I.Operating Mode, Performance of Track Mounted Mobile Crushing Screening Plants

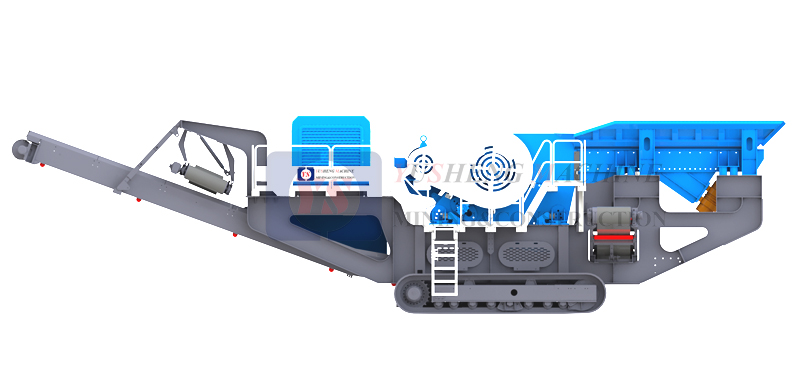

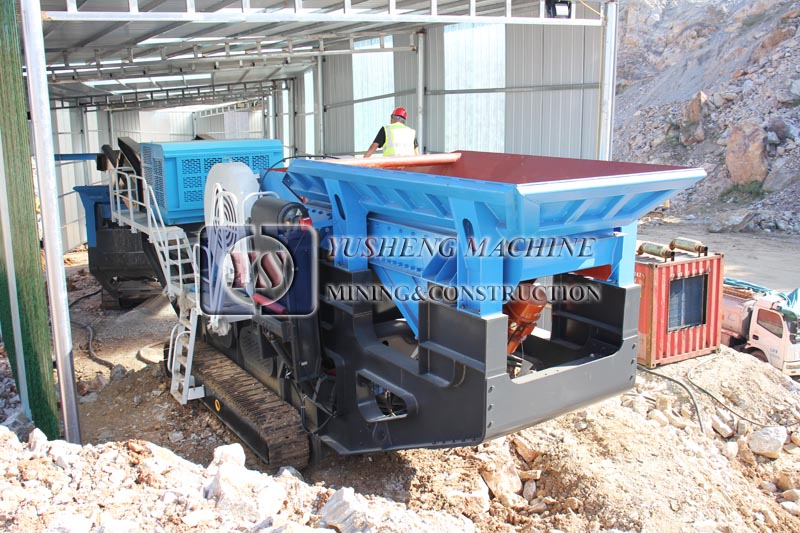

1.Tracked Mobile Jaw Crushing Plants
Tracked jaw crusher is a crushing machine that crushes various hard materials by the extrusion and bending of the two jaws. Track mounted jaw crusher has the advantages of simple structure, reliable work and can crush hard materials with high productivity.

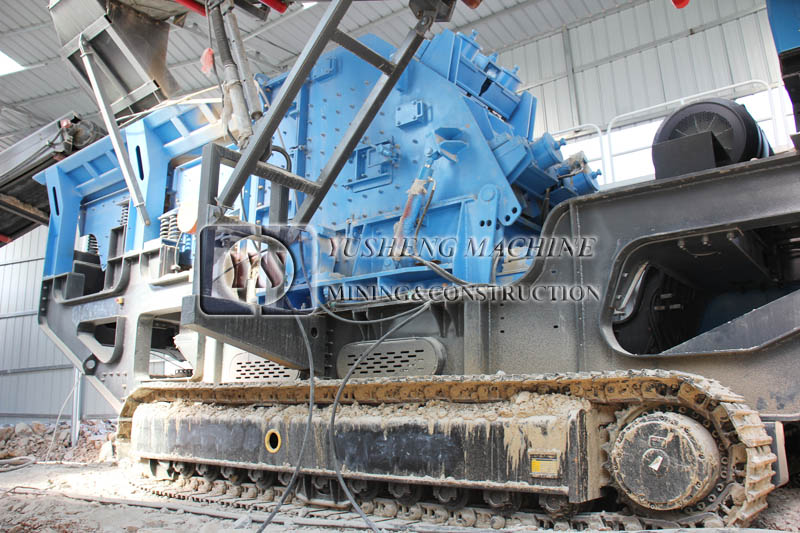

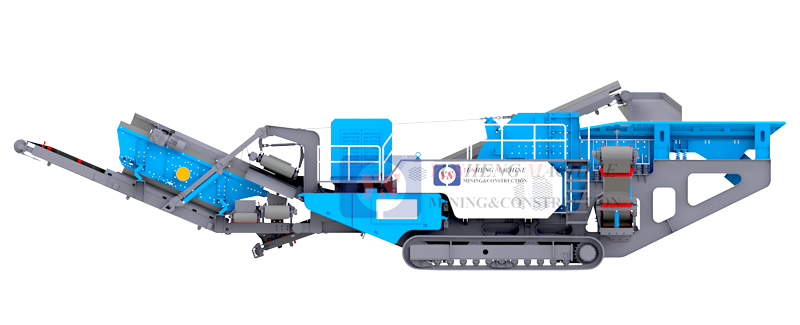

2. Tracked Mobile Impact Crushing Plants
Tracked impact crusher is a crushing machine that crushes materials by repeatedly impacting them with the high-speed impact of the plate hammer and the rebound of the impact plate. Track mounted impact crusher can crush coarse, medium or fine brittle materials below medium-hard.
3.Tracked Mobile Hammer Crushing Plants
Tracked hammer crusher is a crushing machine that crushes materials with high speed impact of hammer head. The lower part of the machine body is equipped with grate to control the size of the discharge material. Crushing limestone, shale, coal, gypsum, chalk and other brittle materials below medium hard.

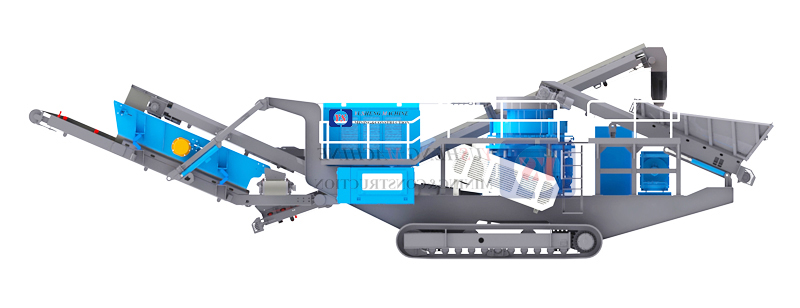

4. Tracked Mobile Cone Crushing Plants
Tracked cone crusher is used to produce extrusion, splitting and bending effects on the material by the cyclic movement of the cone in the cone cavity inside the shell. Tracked cone crusher is a crushing machine suitable for medium or fine crushing operation.
II.Applicable Stone for Track Mounted Mobile Crushing Screening Plants
1.Tracked Mobile Jaw Crushing Plants
Very strong or quite strong, meticulous, ductile quartzite, basalt, granitic rock, quartz porphyry, sandstone, limestone, iron ore, quartz veins, conglomerate, magnesite, and some other high hardness ores. Compressive strength: raw material >200mpa, preferably tracked jaw + tracked cone crushing plant
2. Tracked Mobile Impact Crushing Plants
Track mounted impact crusher is usually used for coarse, medium or fine crushing of brittle materials below medium hardness such as limestone, sandstone, dense marl, coal, calcium carbide, quartz, dolomite, iron sulfide ore, gypsum and chemical raw materials. Compressive strength: 80mpa < raw material < 200mpa, preferably tracked impact crushing plant
3.Tracked Mobile Hammer Crushing Plants
Tracked hammer crusher is usually used to crush limestone, sandstone, dense marl, shale, coal, gypsum, chalk and other brittle materials below medium hard. Compressive strength: raw material <80mpa, preferably tracked hammer crushing plant
4. Tracked Mobile Cone Crushing Plants
Tracked cone crusher is usually used to crush ores with relatively weak compressive strength, such as soft shale, chalk, rock salt, gypsum, anthracite, common marl, crushed sandstone, colluvial conglomerate, stony soil, crushed shale, etc. Compressive strength: 140mpa < raw material < 200mpa, preferably cone crushing plant
