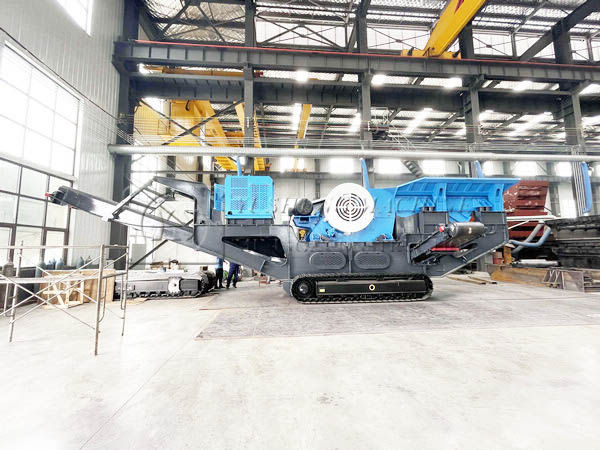

Track Mounted Impact Crusher Crawler Type Mobile Concrete Impact Crushing Station For Sale
Track Mounted Impact Crusher Crawler Type Mobile Concrete Impact Crushing Station For Sale is widely used in various medium hardness crushing process of primary, medium and fine crushing operations, various types of mining rock crushing, solid waste resources utilization, such as housing demolition, road concrete recycling in the crushing of asphalt and concrete mixing plant in the crushing of aggregate, other industries in the material crushing.
Max. Feeding Size: 750mm
Capacity: 100-500TPH
Total Power: 314.5 KW
Engine: Cummins
Weight: 55T
Tracked impact crusher uses impact energy to crush materials, when the material enters the plate hammer area under the action of gravity, it is impacted by the high-speed rotating plate hammer, so that the crushed materials are crushed by the high-speed impact with the plate hammer on the rotor, and then are continuously thrown to the unique impact plate installed above the rotor to crush, and then bounce back from the impact liner to the plate hammer area to be impacted again. The material is crushed from large to small in the crushing cavity until it is crushed to the new required size and discharged from the lower discharge port of the machine.
